Product information

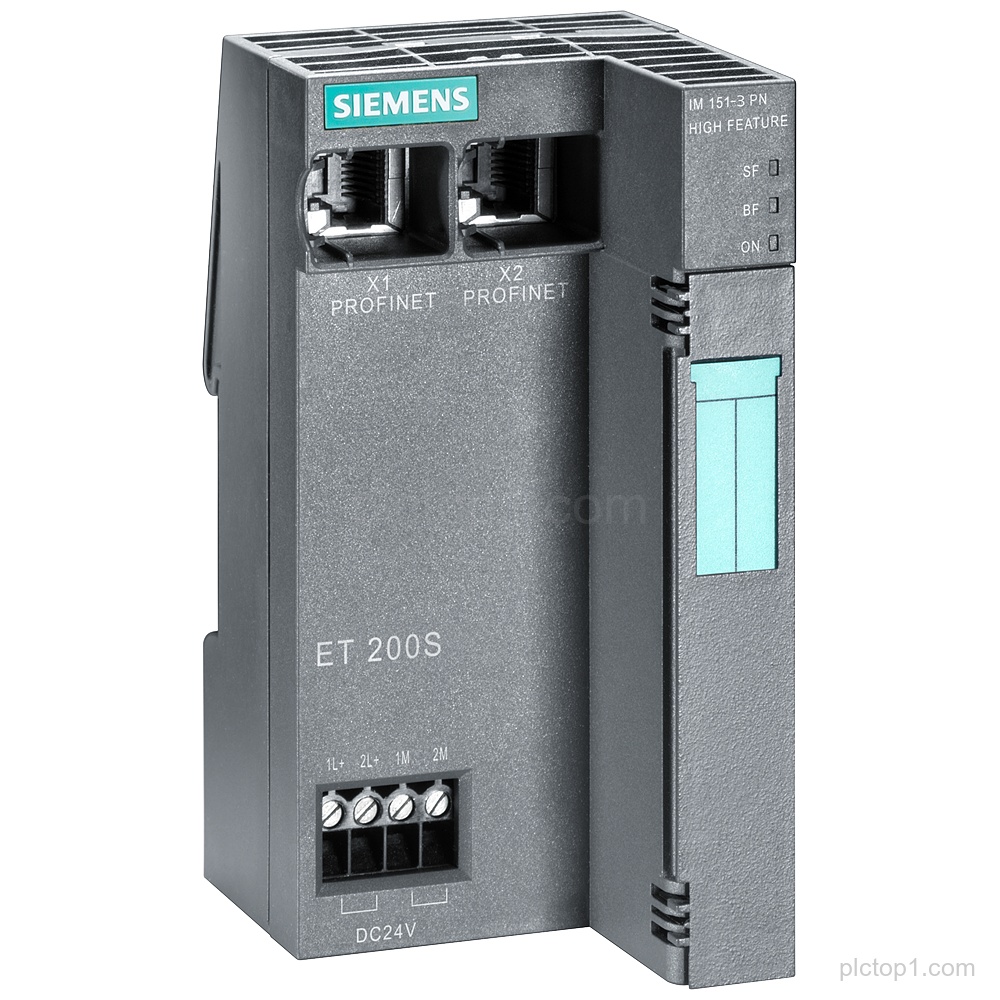

SIPLUS ET 200S IM 151-3 PN HF (Part Number: 6AG1151-3BA23-7AB0) provides an ET 200S interface module with conformal coating and supports up to 63 I/O modules with a maximum transfer rate of 100 Mbps.
Detailed Parameters
Based on:6ES7151-3BA23-0AB0
Coating:conformal coating
Ambient temperature:-25…+70 °C
Interface module transfer rate:100 Mbps max.
Max. connected I/O modules:63
Max. system width:up to 2 m width
Bus connections:2x bus connections via RJ45
Termination module:incl. termination module
Engineering Context
SIPLUS ET 200S IM 151-3 PN HF is based on 6ES7151-3BA23-0AB0 and includes conformal coating.
The interface module supports an interface module transfer rate of 100 Mbps max.
Up to 63 I/O modules can be connected for a system width up to 2 m, using 2x bus connections via RJ45 including the termination module.
FAQ
1. What is the product family and designation for part number 6AG1151-3BA23-7AB0?
SIPLUS ET 200S IM 151-3 PN HF.
2. What is the basis of SIPLUS ET 200S IM 151-3 PN HF?
It is based on 6ES7151-3BA23-0AB0.
3. What coating is provided?
Conformal coating.
4. What ambient temperature range is specified?
-25…+70 °C.
5. What is the maximum interface module transfer rate?
100 Mbps max.
6. How many I/O modules and what maximum width can be connected?
Up to 63 I/O modules and up to 2 m width.
7. How many bus connections are included and what connector type is used?
2x bus connections via RJ45, including a termination module.
