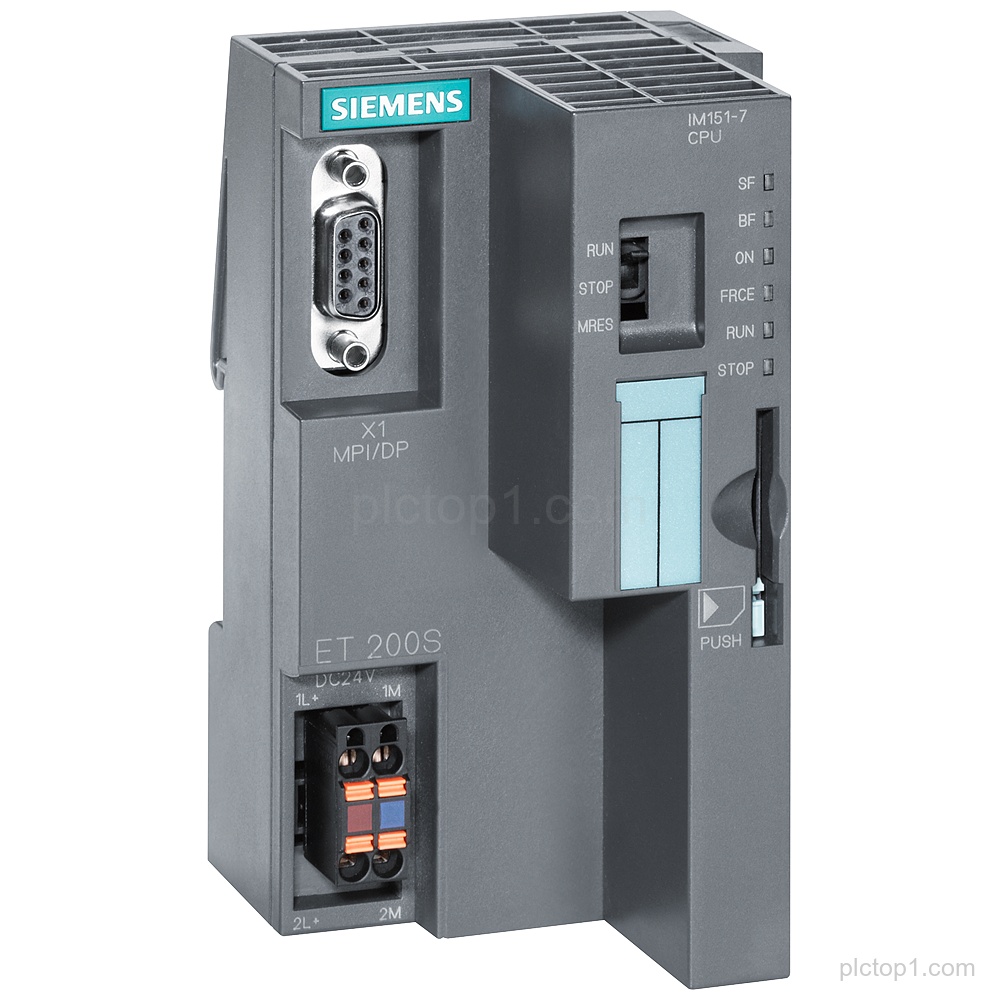

SIPLUS ET 200S IM 151-7 CPU (Part Number: 6AG1151-7AA21-2AB0) provides a CPU based on 6ES7151-7AA21-0AB0 for ET 200S with conformal coating, 128 KB work memory, and an integrated PROFIBUS DP interface as DP Slave.
Detailed Parameters
Product family:SIPLUS ET 200S
Module designation:IM 151-7 CPU
Based on:6ES7151-7AA21-0AB0
Conformal coating:Yes
Operating temperature:-25…+60 °C
System:ET 200S
Work memory:128 KB
Integrated interface:PROFIBUS DP
PROFIBUS DP interface type:9-pole D-sub socket
PROFIBUS DP role:DP Slave
Battery:without battery
SIMATIC MMC requirement:SIMATIC MMC required: without
Engineering Context
The SIPLUS ET 200S IM 151-7 CPU is intended for use in the ET 200S system configuration.
The integrated PROFIBUS DP interface is provided as a DP Slave with a 9-pole D-sub socket.
The module is based on 6ES7151-7AA21-0AB0 and is delivered with conformal coating for operation in the range -25…+60 °C.
FAQ
1. What is the module type for part number 6AG1151-7AA21-2AB0?
It is a SIPLUS ET 200S IM 151-7 CPU.
2. Which base CPU is 6AG1151-7AA21-2AB0 based on?
It is based on 6ES7151-7AA21-0AB0.
3. Does 6AG1151-7AA21-2AB0 include conformal coating?
Yes, it is provided with conformal coating.
4. What is the operating temperature range for 6AG1151-7AA21-2AB0?
-25…+60 °C.
5. How much work memory does the module have?
128 KB.
6. What PROFIBUS interface is integrated and what role does it operate as?
An integrated PROFIBUS DP interface (9-pole D-sub socket) operating as DP Slave.
7. Is a SIMATIC MMC required for this CPU version?
No, SIMATIC MMC required is listed as without.
