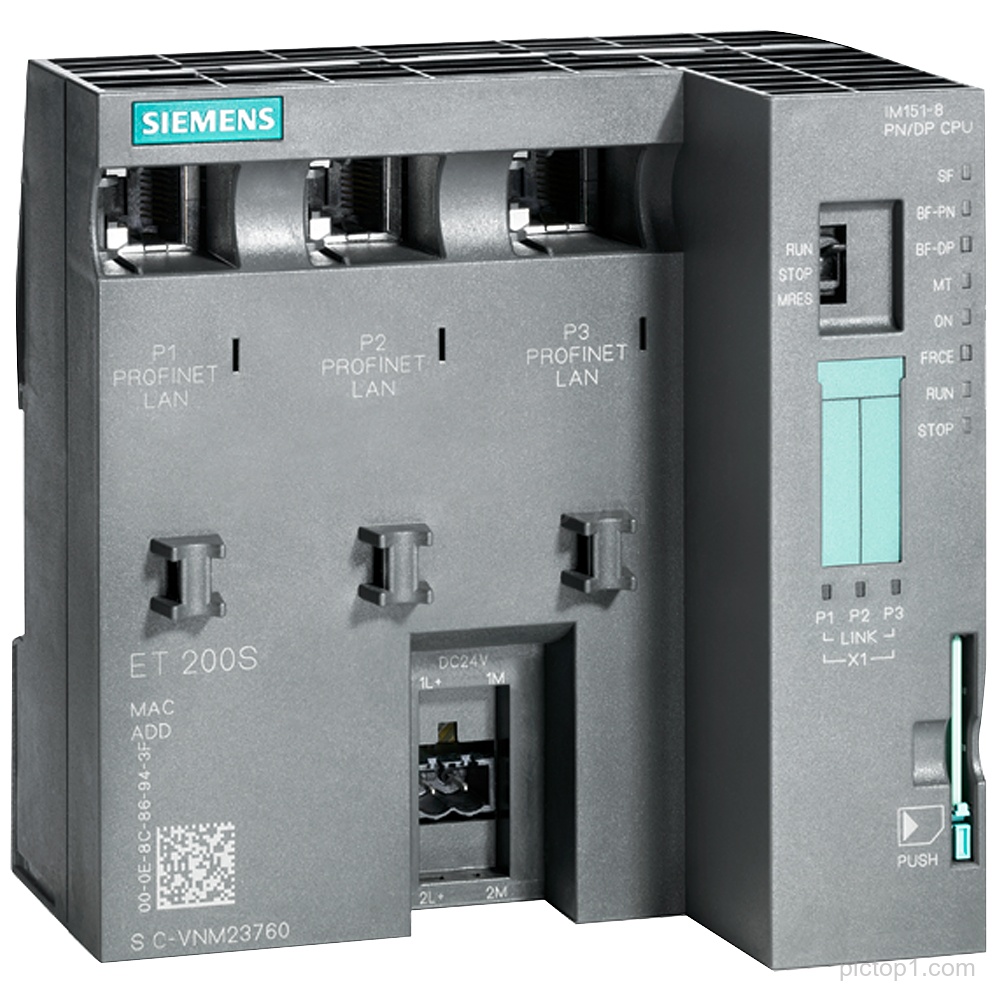

SIPLUS ET 200S IM 151-8 PN/DP CPU (Part Number: 6AG1151-8AB01-7AB0) provides an internal PROFINET interface with three RJ45 ports as IO Controller and operates with conformal coating.
Detailed Parameters
Base CPU:6ES7151-8AB01-0AB0
Conformal coating:with conformal coating
Operating temperature:-40…+70 °C
Startup temperature:start up -25 °C
Work memory:192 KB
Integrated interface:int. PROFINET interface
PROFINET ports:with three RJ45 ports
Role:as IO Controller
Battery MMC requirement:without battery MMC required
Engineering Context
The SIPLUS ET 200S IM 151-8 PN/DP CPU provides an internal PROFINET interface with three RJ45 ports configured as an IO Controller.
The conformal coating variant supports operation over -40…+70 °C and start up at -25 °C as stated in the product information.
The CPU offers 192 KB work memory and is specified to operate without battery MMC required.
FAQ
1. What is the product family and function of 6AG1151-8AB01-7AB0?
SIPLUS ET 200S IM 151-8 PN/DP CPU, with integrated PROFINET interface configured as IO Controller.
2. Which base CPU is referenced for SIPLUS ET 200S IM 151-8 PN/DP CPU?
It is based on 6ES7151-8AB01-0AB0.
3. What interface does the CPU provide and how many RJ45 ports are included?
It has an int. PROFINET interface with three RJ45 ports.
4. What work memory is specified for this CPU?
192 KB work memory.
5. Is a battery MMC required for this CPU?
No, without battery MMC required.
6. What temperature range is specified for operation and startup?
Operating temperature is -40…+70 °C and start up is -25 °C.
