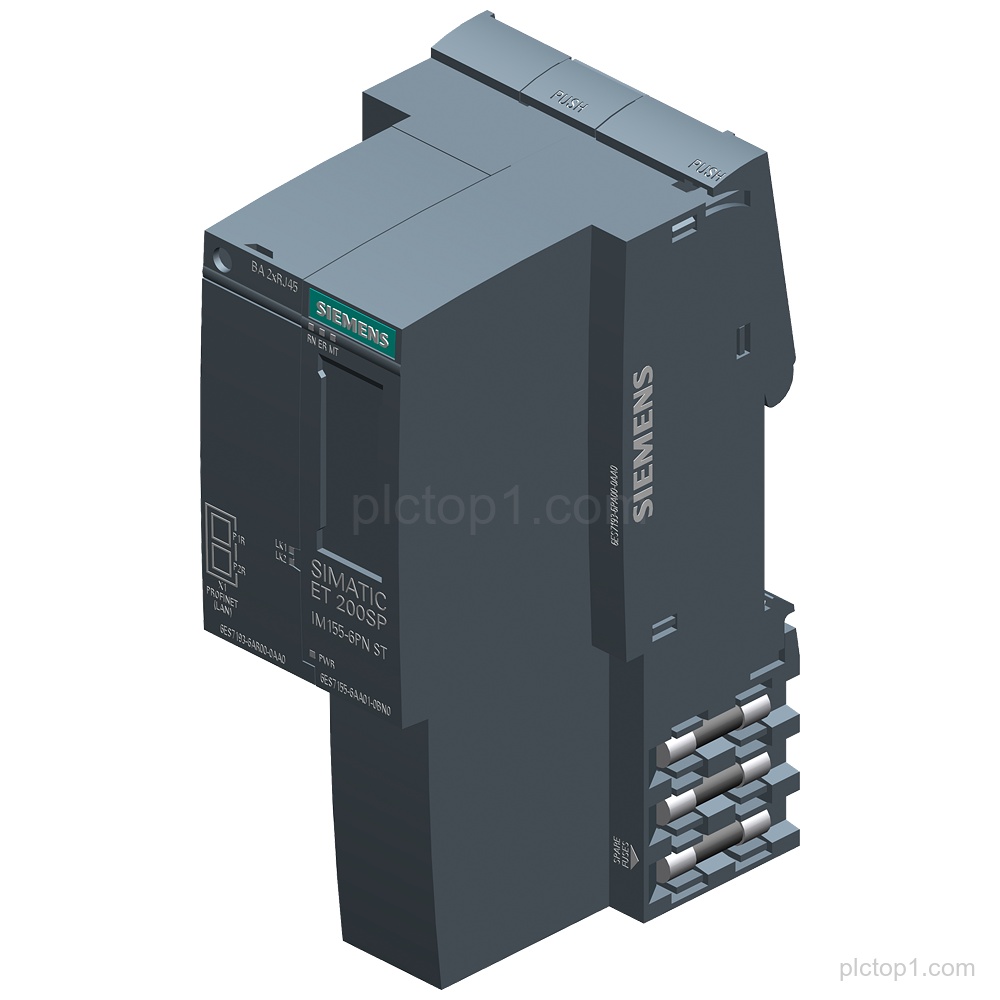

SIPLUS ET 200SP IM155-6PN interface module (part number 6AG1155-6AA01-7BN0) with conformal coating for deployment in a bundle based on 6ES7155-6AA01-0BN0 with PROFINET IM and a specified ET 200SP interface configuration.
Detailed Parameters
Product type:interface module (IM155-6PN ST BA)
Based on:6ES7155-6AA01-0BN0
Conformal coating:yes
Ambient temperature range:-40…+70 °C
PROFINET IM bundle:bundle PROFINET IM
Slots:1 slot for BusAdapter
Max. I/O modules:32
Max. ET 200AL modules:16
Hot swap:single hot swap
Bundle contents:interface module (6AG1155-6AU01-7BN0), server module (6AG1193-6PA00-7AA0), BusAdapter BA 2xRJ45 (6AG1193-6AR00-7AA0)
Spare part:spare part
Engineering Context
The IM155-6PN interface module is provided as part of a SIPLUS ET 200SP bundle based on 6ES7155-6AA01-0BN0 with conformal coating.
The configuration supports bundle PROFINET IM with 1 slot for BusAdapter and limits of up to 32 I/O modules and 16 ET 200AL modules.
Single hot swap capability is specified for the bundle configuration.
FAQ
1. What is the bundle based on for the SIPLUS ET 200SP IM155-6PN ST BA configuration?
It is based on 6ES7155-6AA01-0BN0.
2. What conformal coating and ambient temperature range are specified for the 6AG1155-6AA01-7BN0 spare part?
Conformal coating is specified, and the ambient temperature range is -40…+70 °C.
3. How many BusAdapter slots are provided in the configuration?
The configuration provides 1 slot for BusAdapter.
4. What are the maximum supported module counts stated for I/O modules and ET 200AL modules?
The configuration specifies max. 32 I/O modules and 16 ET 200AL modules.
5. Is single hot swap supported in this configuration?
Yes, single hot swap is specified.
6. Which components are included in the bundle for the SIPLUS ET 200SP IM155-6PN ST BA configuration?
The bundle consists of interface module (6AG1155-6AU01-7BN0), server module (6AG1193-6PA00-7AA0), and BusAdapter BA 2xRJ45 (6AG1193-6AR00-7AA0).
