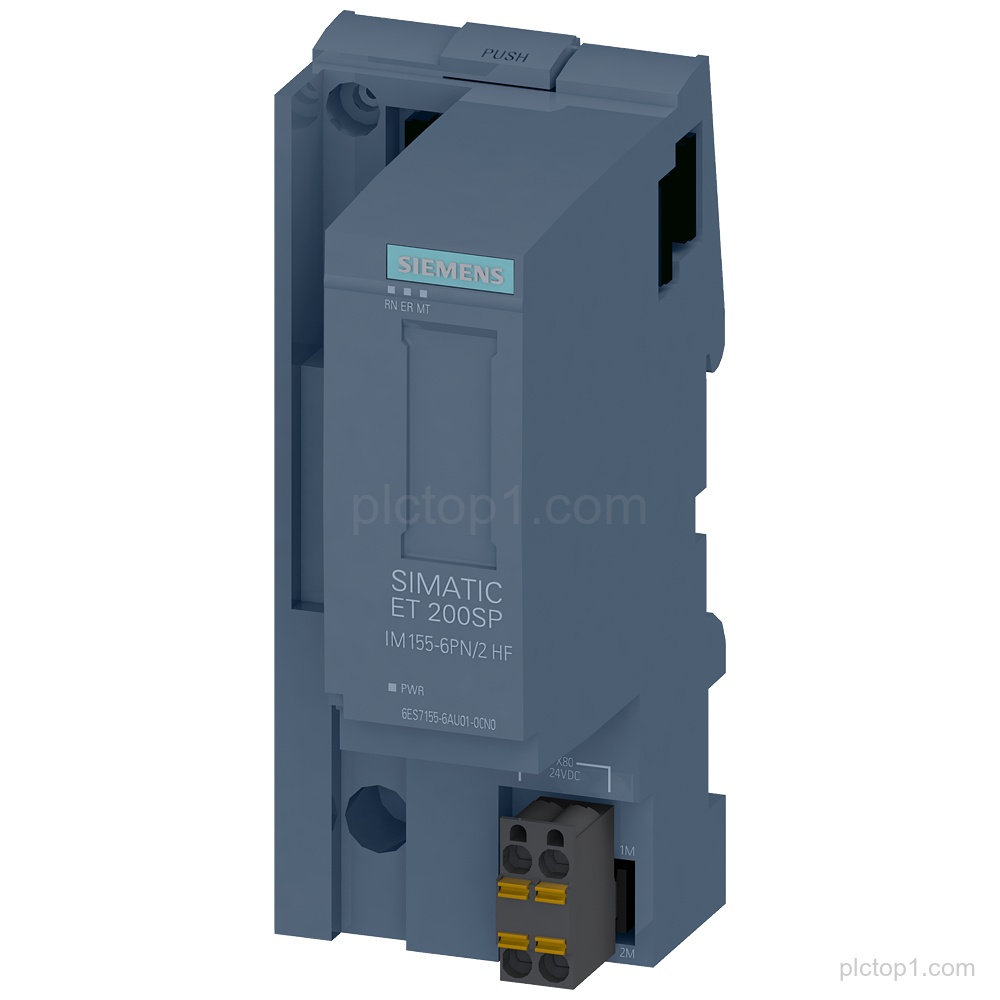

SIPLUS ET 200SP IM155-6PN HF spare part for part number 6AG1155-6AU01-7CN0, based on 6ES7155-6AU01-0CN0, with conformal coating and defined interface, hot swap, and redundancy features.
Detailed Parameters
Part Number:6AG1155-6AU01-7CN0
Product designation:SIPLUS ET 200SP IM155-6PN HF
Based on:6ES7155-6AU01-0CN0
Conformal coating:Provided
Operating temperature:-40…+70 °C
Interface module type:2-port interface module
Slot:1 slot for BusAdapter
Max. I/O modules:64
Max. ET 200AL modules:16
Redundancy:S2 redundancy
Hot swap:multi hot swap
Cycle time:0.25 ms
Mode:isochronous mode
Optional PN strain relief:Optional
Included server module:6AG1193-6PA00-7AA0
Engineering Context
The SIPLUS ET 200SP IM155-6PN HF spare part is based on 6ES7155-6AU01-0CN0 with conformal coating.
The interface module provides a 2-port interface and uses 1 slot for BusAdapter in the ET 200SP configuration.
S2 redundancy and multi hot swap are specified for this module.
FAQ
1. What is the product designation for part number 6AG1155-6AU01-7CN0?
SIPLUS ET 200SP IM155-6PN HF.
2. Based on which Siemens part is the spare part?
It is based on 6ES7155-6AU01-0CN0.
3. Does the module include conformal coating?
Yes, conformal coating is specified as provided.
4. What interface type and slot requirement are specified?
It is a 2-port interface module with 1 slot for BusAdapter.
5. What capacity limits for connected modules are specified?
Up to 64 I/O modules and 16 ET 200AL modules are specified.
6. Which redundancy and hot swap behavior are specified?
S2 redundancy and multi hot swap are specified.
7. Is an optional PN strain relief listed?
Yes, optional PN strain relief is listed.
