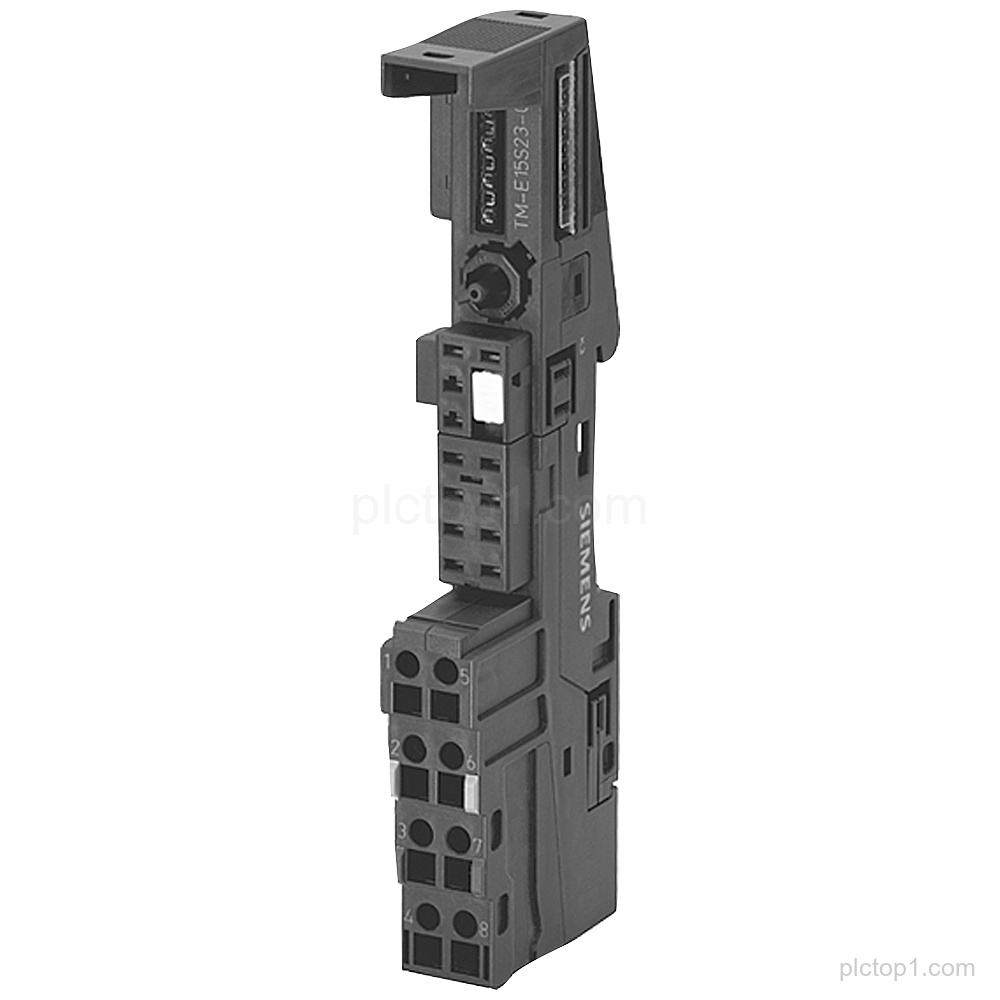

SIPLUS ET 200S TM-E15C24-01 with part number 6AG1193-4CB30-2AA0 is based on 6ES7193-4CB30-0AA0 and is equipped with conformal coating and spring-loaded terminals.
Detailed Parameters
Based on:6ES7193-4CB30-0AA0
Conformal coating:Yes
Ambient temperature:-40…+70 °C
Packing unit (units per packing unit):5
For electronic modules (width):15 mm
Terminal type:spring-loaded terminals
Terminal connections:2×4
Terminal access to AUX1:without terminal access to AUX1
AUX1:continuous
Engineering Context
The SIPLUS ET 200S TM-E15C24-01 is based on 6ES7193-4CB30-0AA0 and uses conformal coating.
The module is designed for electronic modules with 15 mm width and provides spring-loaded terminals with 2×4 terminal connections.
AUX1 is continuous, with operation specified as without terminal access to AUX1.
FAQ
1. What is the basis for 6AG1193-4CB30-2AA0?
6AG1193-4CB30-2AA0 is based on 6ES7193-4CB30-0AA0.
2. Does the module include conformal coating?
Yes, it is based on 6ES7193-4CB30-0AA0 with conformal coating.
3. What ambient temperature range is specified?
-40…+70 °C.
4. For what electronic module width is the TM-E15C24-01 specified?
15 mm width.
5. What terminal connection type and number of terminals are specified?
Spring-loaded terminals with 2×4 terminal connections.
6. Is there terminal access to AUX1?
No, it is without terminal access to AUX1; AUX1 is continuous.
