Product information

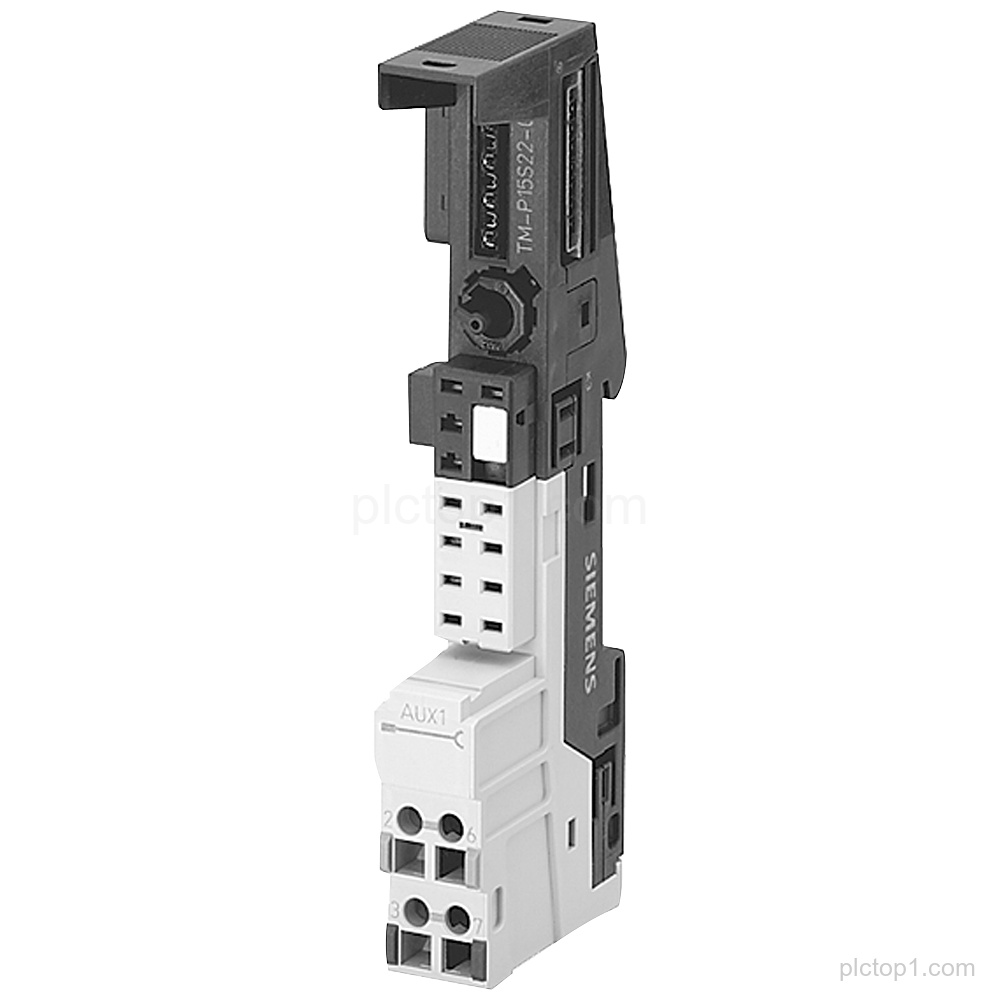

SIPLUS ET 200S TM-P15S23-A0 for power modules (Part Number: 6AG1193-4CD20-2AA0) based on 6ES7193-4CD20-0AA0 with conformal coating and screw terminals 2×3 terminal connections including terminal access to AUX1.
Detailed Parameters
Based on:6ES7193-4CD20-0AA0
Conformal coating:Yes
Application:for power modules
Temperature range:-40…+70 °C
Width:15 mm
Terminal type:screw terminals
Terminal connections:2×3 terminal connections
Terminal access to:AUX1
AUX1:interrupted
Engineering Context
The SIPLUS ET 200S TM-P15S23-A0 is designed for power modules and provides terminal access to AUX1.
The module uses screw terminals with 2×3 terminal connections and a 15 mm width.
The SIPLUS ET 200S TM-P15S23-A0 with conformal coating is specified for operation within -40…+70 °C.
FAQ
1. What is the product family and designation for Part Number 6AG1193-4CD20-2AA0?
SIPLUS ET 200S TM-P15S23-A0.
2. For what is the TM-P15S23-A0 designed?
for power modules.
3. What is the module based on?
6ES7193-4CD20-0AA0.
4. Does the module have conformal coating?
Yes.
5. What temperature range is specified?
-40…+70 °C.
6. What terminal configuration does the module use?
screw terminals with 2×3 terminal connections and terminal access to AUX1.
7. What is the stated condition of AUX1?
AUX1 interrupted.
