Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

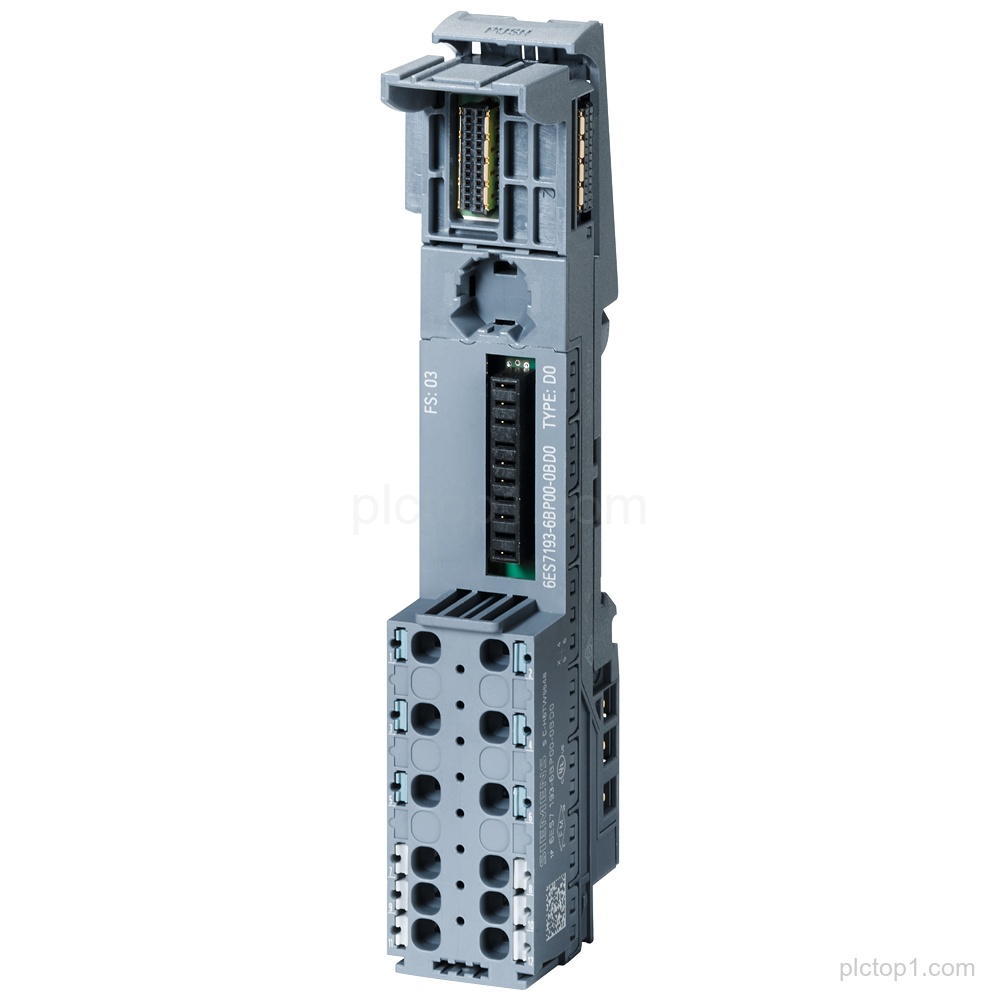

SIPLUS ET 200SP BU20-P12+A0+0B (Part number: 6AG1193-6BP00-7BD0) is based on 6ES7193-6BP00-0BD0 with conformal coating and push-in terminals.
Detailed Parameters
Based on:6ES7193-6BP00-0BD0
Conformal coating:Yes
Operating temperature:-40…+70 °C
BU type:D0
Terminal type:push-in terminals
AUX terminals:without AUX terminals
Terminal bridging:bridged to the left
Dimensions (WxH):20 mm x 117 mm
Engineering Context
SIPLUS ET 200SP BU20-P12+A0+0B is based on 6ES7193-6BP00-0BD0 and includes conformal coating.
The module is designed for systems requiring BU type D0 and push-in terminals without AUX terminals.
The terminal layout is bridged to the left and provided with dimensions WxH of 20 mm x 117 mm.
FAQ
1. What is the part number of the SIPLUS ET 200SP BU20-P12+A0+0B module?
6AG1193-6BP00-7BD0.
2. Which base module is the SIPLUS ET 200SP BU20-P12+A0+0B based on?
It is based on 6ES7193-6BP00-0BD0.
3. Does the module include conformal coating?
Yes.
4. What temperature range is specified?
-40…+70 °C.
5. What terminal type does the module use?
push-in terminals.
6. Does it include AUX terminals?
No, it is without AUX terminals.
