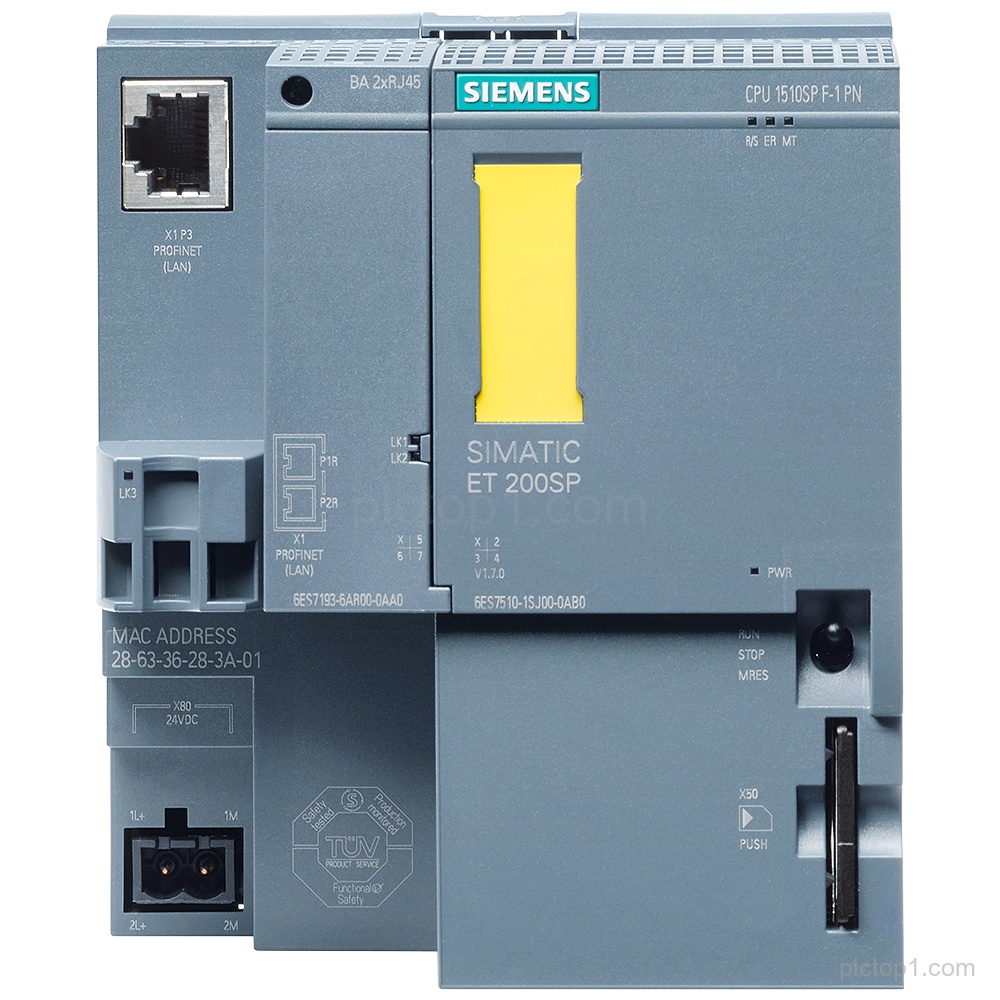

SIPLUS ET 200SP CPU 1510SP F-1PN, part number 6AG1510-1SJ01-2AB0, is a central processing unit based on 6ES7510-1SJ01-0AB0 with conformal coating for the specified operating temperature range and PROFINET IRT interface configuration.
Detailed Parameters
Part number:6AG1510-1SJ01-2AB0
Based on:6ES7510-1SJ01-0AB0
Conformal coating:Yes
Operating temperature:-25…+60 °C
Function:Central processing unit
Work memory for program:150 KB
Work memory for data:750 KB
Interface:1st interface
PROFINET IRT:Yes
Switch:3-port switch
Bit performance:72 ns
SIMATIC Memory Card required:Yes
BusAdapter required:For port 1 and 2
Engineering Context
The CPU 1510SP F-1PN is specified as a central processing unit with work memory for program and data.
PROFINET IRT operation is supported via the 1st interface with a 3-port switch.
SIMATIC Memory Card is required and a BusAdapter is required for port 1 and 2.
FAQ
1. What is the based-on CPU for SIPLUS ET 200SP CPU 1510SP F-1PN part 6AG1510-1SJ01-2AB0?
It is based on 6ES7510-1SJ01-0AB0.
2. What conformal coating and operating temperature range are specified for 6AG1510-1SJ01-2AB0?
It has conformal coating and is specified for -25…+60 °C.
3. How much work memory is provided for program and data?
Work memory is specified as 150 KB for program and 750 KB for data.
4. Which interface and PROFINET feature are specified for this CPU?
The specified interface is the 1st interface and it supports PROFINET IRT.
5. How is the PROFINET interface switch configured?
The PROFINET IRT interface is specified with a 3-port switch.
6. Is a SIMATIC Memory Card required and is a BusAdapter required?
SIMATIC Memory Card is required, and a BusAdapter is required for port 1 and 2.
