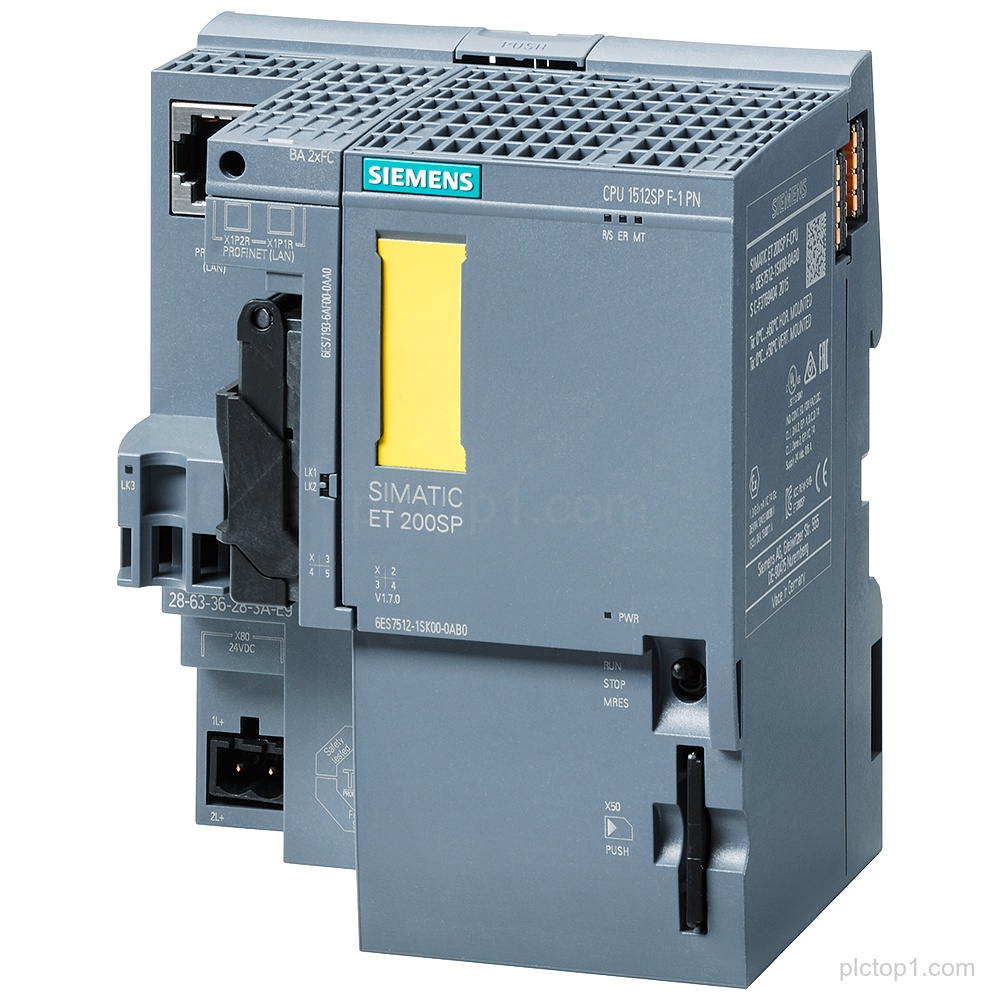

SIPLUS ET 200SP CPU 1512SP F-1 PN (Part Number: 6AG1512-1SK01-2AB0) is a central processing unit for the ET 200SP system with conformal coating and PROFINET IRT support via port 1.
Detailed Parameters
Basis:based on 6ES7512-1SK01-0AB0
Conformal coating:yes
Operating temperature:-25…+60 °C
Work memory for program:300 KB
Work memory for data:1 MB
Interface (1st):PROFINET IRT
PROFINET IRT switch:3-port switch
Bit performance:48 ns
Required memory card:SIMATIC Memory Card required
Required bus adapter:BusAdapter required for port 1 and 2
Engineering Context
Use SIPLUS ET 200SP CPU 1512SP F-1 PN as the central processing unit for program execution and data processing in an ET 200SP system configuration.
The 1st interface is PROFINET IRT with a 3-port switch for network connection.
A SIMATIC Memory Card and a BusAdapter for port 1 and 2 are required for operation in the specified configuration.
FAQ
1. What is the basis of SIPLUS ET 200SP CPU 1512SP F-1 PN with Part Number 6AG1512-1SK01-2AB0?
It is based on 6ES7512-1SK01-0AB0.
2. Which operating temperature range is specified for 6AG1512-1SK01-2AB0?
-25…+60 °C.
3. What memory capacities are specified for CPU 1512SP F-1 PN?
300 KB work memory for program and 1 MB work memory for data.
4. What is the type of the 1st interface on 6AG1512-1SK01-2AB0?
PROFINET IRT.
5. Does 6AG1512-1SK01-2AB0 include a PROFINET switch, and how many ports are specified?
Yes, it includes a 3-port switch for PROFINET IRT.
6. Which items are explicitly required for operation?
A SIMATIC Memory Card is required, and a BusAdapter is required for port 1 and 2.
