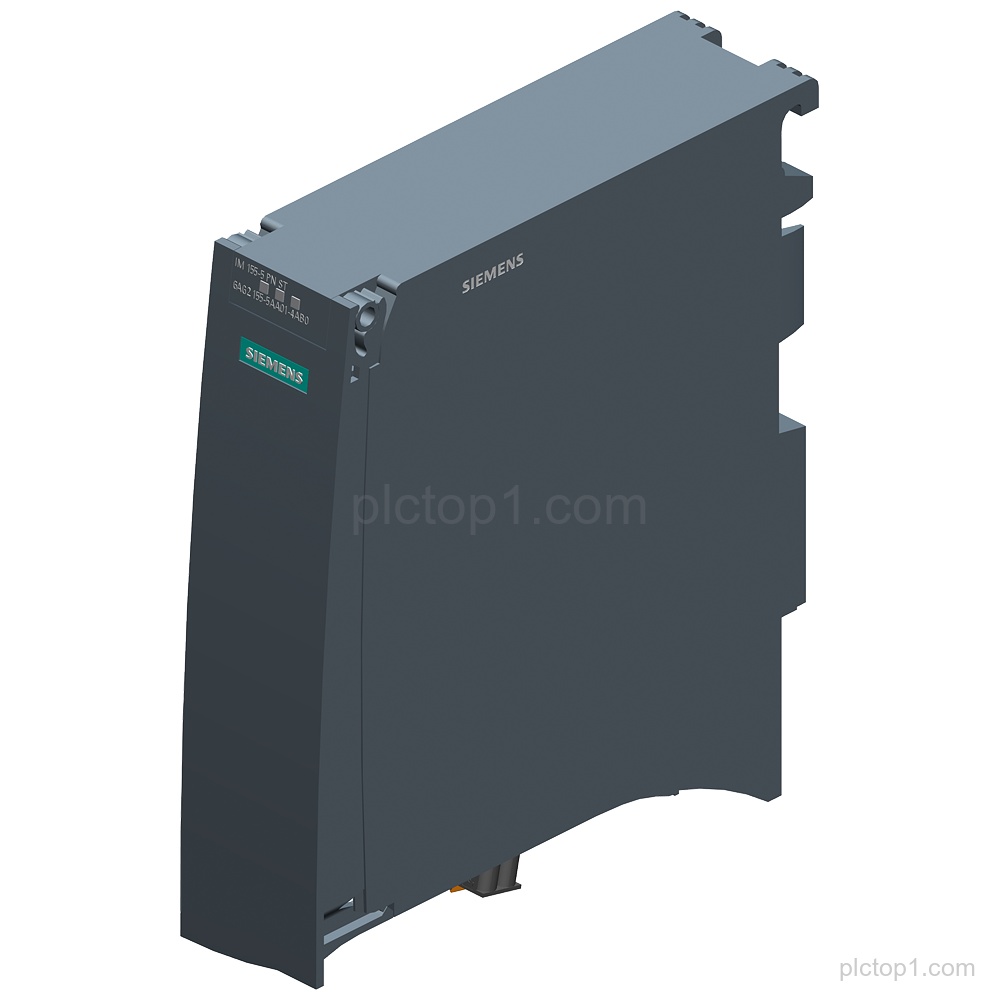

SIPLUS ET 200MP IM155-5 PN ST TX rail based on 6ES7155-5AA01-0AB0 (part number: 6AG2155-5AA01-4AB0) with conformal coating provides a PROFINET IO device interface module for ET 200MP electronic modules.
Detailed Parameters
Conformal coating:Yes
Operating temperature:-40…+70 °C
OT4:Yes
OT4 temperature condition:+85 °C for 10 minutes
Product type:PROFINET IO device interface module for ET 200MP electronic modules
Base rail concept:Rail based on 6ES7155-5AA01-0AB0
IO module capacity without PS:Up to 12 IO modules
IO module capacity with additional PS:Up to 30 IO modules
Integrated switch:Integrated 2-port switch
RJ45 shared device:RJ45 shared device
MRP:Yes
IRT:>=0.25 ms
Isochronous mode:Isochronous mode
Isochronous mode firmware update:FW update
I&M:I&M0…3
With 500 ms:Yes
Engineering Context
This module provides the PROFINET IO device interface for ET 200MP electronic modules.
The integrated 2-port switch with RJ45 shared device supports PROFINET interface operation as configured for ET 200MP.
MRP and isochronous mode operation are supported as specified for this rail-based IM155-5 PN ST TX.
FAQ
1. What is the function of 6AG2155-5AA01-4AB0?
It is a PROFINET IO device interface module for ET 200MP electronic modules.
2. What rail-based reference is used for SIPLUS ET 200MP IM155-5 PN ST TX?
It is rail based on 6ES7155-5AA01-0AB0.
3. What IO module capacity is supported for this interface module without PS and with additional PS?
Up to 12 IO modules without PS and up to 30 IO modules with additional PS.
4. What switch and connector features are included?
It includes an integrated 2-port switch and an RJ45 shared device.
5. What temperature range and OT4 condition are specified?
Operating temperature is -40…+70 °C, and OT4 with +85 °C for 10 minutes is specified.
6. Which timing and I&M features are specified?
IRT is >=0.25 ms, isochronous mode FW update is specified, and I&M0…3 with 500 ms is specified.
