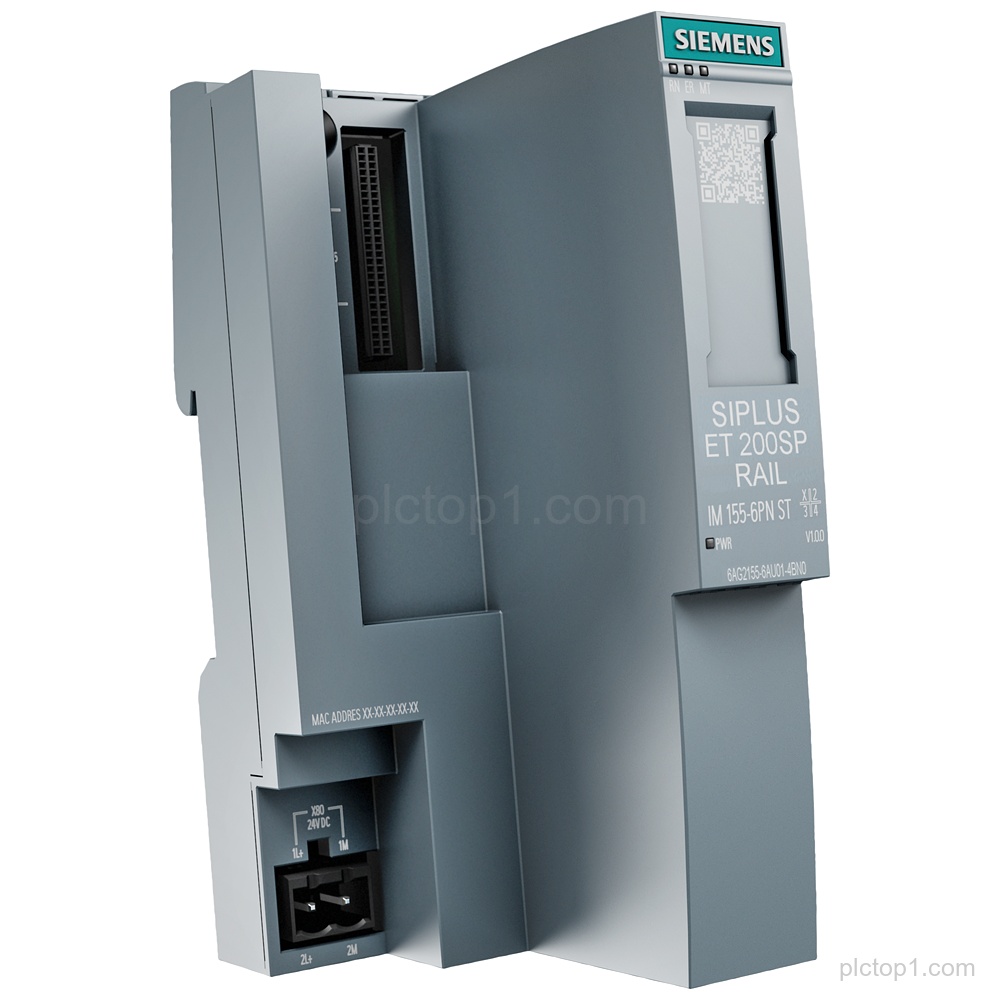

SIPLUS ET 200SP IM155-6PN ST with part number 6AG2155-6AU01-4BN0 provides a PROFINET interface module in a rail-based ET 200SP system and is delivered as a spare part including the server module 6AG1193-6PA00-7AA0.
Detailed Parameters
Conformal coating:with conformal coating
Reference rail based on:6ES7155-6AU01-0BN0
Operating temperature range:-40…+70 °C
OT4 specification:OT4 with ST1/2 (+85 °C for 10 minutes)
Interface module type:PROFINET interface module
Slots:1 slot for BusAdapter
Max. I/O modules:max. 32 I/O modules
Max. ET 200AL modules:16 ET 200AL modules
Hot swap:single hot swap
Included server module:6AG1193-6PA00-7AA0
Product category:spare part
Engineering Context
The SIPLUS ET 200SP IM155-6PN ST TX rail based configuration uses a PROFINET interface module for the ET 200SP system.
The module supports 1 slot for BusAdapter and allows up to max. 32 I/O modules and 16 ET 200AL modules in the system configuration.
The specified temperature conditions include -40…+70 °C and OT4 with ST1/2 (+85 °C for 10 minutes).
FAQ
1. What module type does 6AG2155-6AU01-4BN0 provide?
It provides a PROFINET interface module.
2. What is the conformal coating status of 6AG2155-6AU01-4BN0?
It is with conformal coating.
3. What temperature range is specified for 6AG2155-6AU01-4BN0?
The specified operating temperature range is -40…+70 °C.
4. What does OT4 with ST1/2 refer to in the provided data for 6AG2155-6AU01-4BN0?
OT4 with ST1/2 (+85 °C for 10 minutes).
5. How many slots for BusAdapter does 6AG2155-6AU01-4BN0 include?
It includes 1 slot for BusAdapter.
6. What maximum module counts are specified for 6AG2155-6AU01-4BN0?
It supports max. 32 I/O modules and 16 ET 200AL modules.
7. Is 6AG2155-6AU01-4BN0 configured for hot swap, and what level is specified?
It is specified as single hot swap.
8. Which server module is included with 6AG2155-6AU01-4BN0?
It includes server module 6AG1193-6PA00-7AA0.
