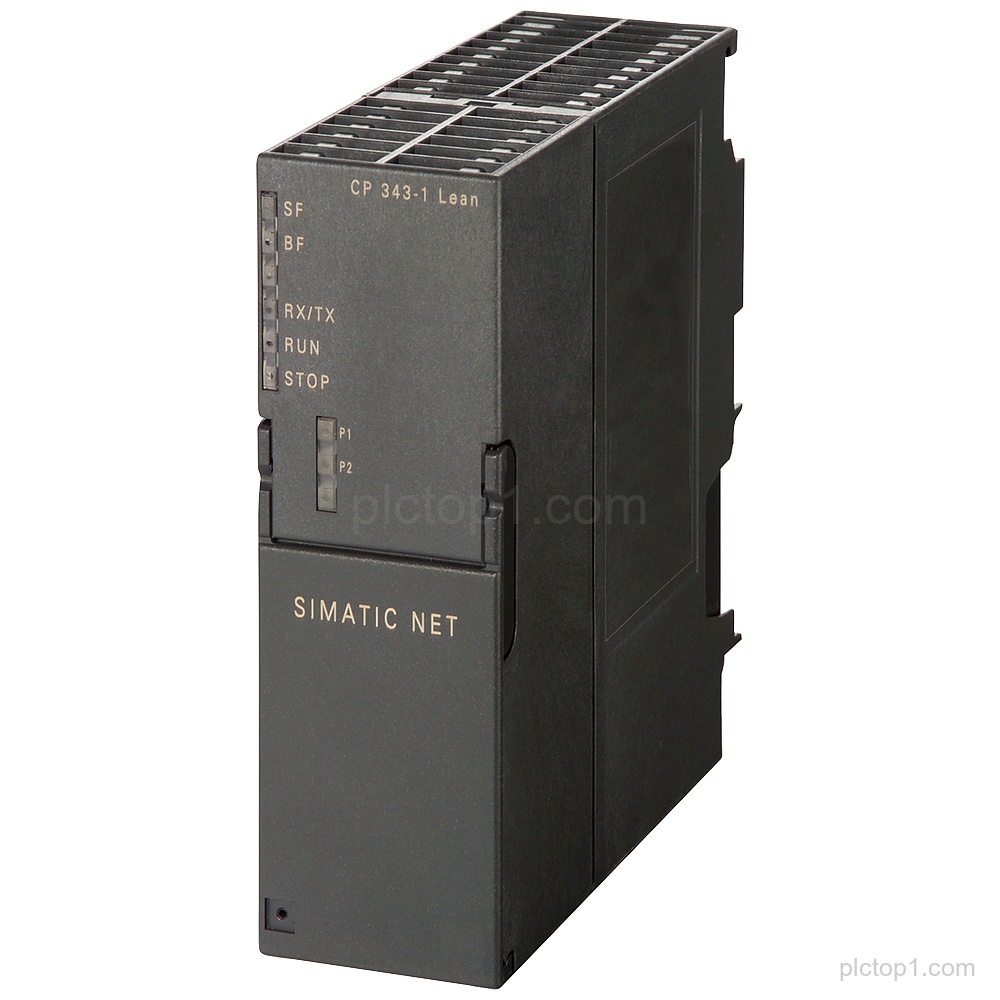

SIPLUS NET CP 343-1 (Part Number: 6AG1343-1CX10-2XE0) is a communications processor for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, with conformal coating and initialization via LAN.
Detailed Parameters
Product type:spare part
Designation / family:SIPLUS NET CP 343-1
Based on:6GK7343-1CX10-0XE0
Coating:conformal coating
Operating temperature range:-25…+60 °C
Communications processor function:connection of SIMATIC S7-300 to Industrial Ethernet
Transport protocols:TCP/IP and UDP
Multicast:supported
RFC1006:send/receive with and without RFC1006
S7 communication:S7 communication (server)
PROFINET IO device:integrated
Integrated switch:2-port switch ERTEC 200
Module replacement:module replacement without PG
Diagnostics:SNMP diagnostics
Initialization:initialization via LAN
Services / operations:fetch/ write
Engineering Context
Designed as a communications processor for connecting SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP.
Provides S7 communication (server) with integrated PROFINET IO device functionality and an integrated 2-port switch ERTEC 200.
Supports SNMP diagnostics and initialization via LAN, and allows module replacement without PG.
FAQ
1. What is 6AG1343-1CX10-2XE0?
It is a spare part of the SIPLUS NET CP 343-1 communications processor.
2. Which controller connection is supported?
It is designed for connection of SIMATIC S7-300 to Industrial Ethernet.
3. Which network protocols are supported?
It supports TCP/IP and UDP, including multicast.
4. Does it support RFC1006?
Yes, it supports send/receive with and without RFC1006.
5. What S7 communication role does it support?
It provides S7 communication (server) with integrated PROFINET IO device.
6. What integrated switching is included?
It includes an integrated 2-port switch ERTEC 200.
7. What diagnostics and initialization features are available?
It supports SNMP diagnostics and initialization via LAN.
8. What is the stated operating temperature range?
The specified operating temperature range is -25…+60 °C.
