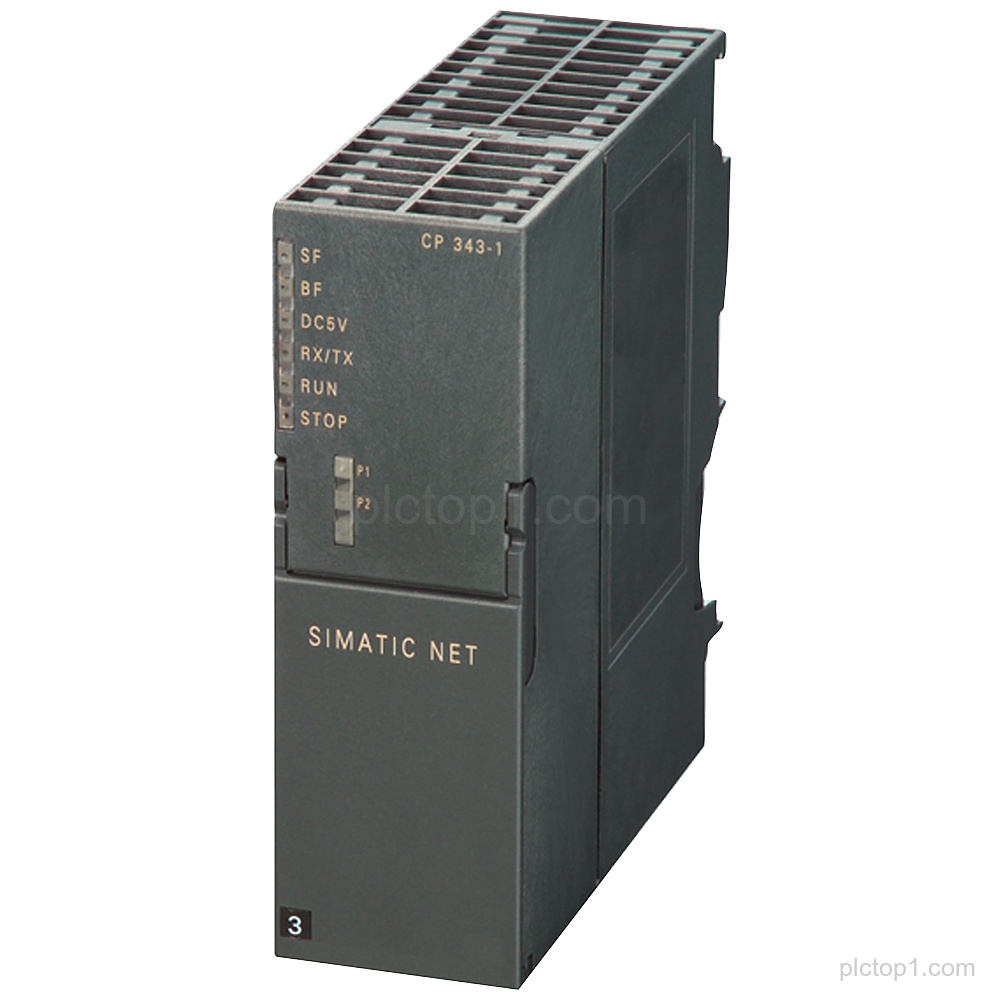

SIPLUS NET CP 343-1 communications processor (Part number: 6AG1343-1EX30-7XE0) for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP, supporting PROFINET IO controller or PROFINET IO device operation.
Detailed Parameters
Conformal coating:with conformal coating
Operating temperature:-25…+70 °C
Based on:6GK7343-1EX30-0XE0
Function:communications processor for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP
PROFINET support:PROFINET IO controller or PROFINET IO device
Integrated switch:integrated 2-port switch ERTEC 200 S7
Data handling:fetch/write, send/receive with and without RFC1006
Multicast:multicast DHCP
Synchronization:NTC-CPU sync
Diagnostics:diagnostics
Initialization:initialization via LAN
Engineering Context
The SIPLUS NET CP 343-1 is a communications processor intended for connecting SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP.
The integrated 2-port switch ERTEC 200 S7 supports communication for the SIMATIC S7-300 connection.
The module supports data exchange via fetch/write and send/receive with and without RFC1006, and includes multicast DHCP and NTC-CPU sync.
FAQ
1. What is the product family and designation for part number 6AG1343-1EX30-7XE0?
SIPLUS NET CP 343-1 communications processor.
2. Which system connection is supported by this SIPLUS NET CP 343-1?
Connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP.
3. Does SIPLUS NET CP 343-1 support PROFINET IO controller or PROFINET IO device operation?
Yes, it supports PROFINET IO controller or PROFINET IO device.
4. How many ports does the integrated switch provide on this module?
An integrated 2-port switch ERTEC 200 S7.
5. What communication methods are supported for send/receive?
Send/receive with and without RFC1006, and fetch/write.
6. What is the specified temperature range?
-25…+70 °C.
