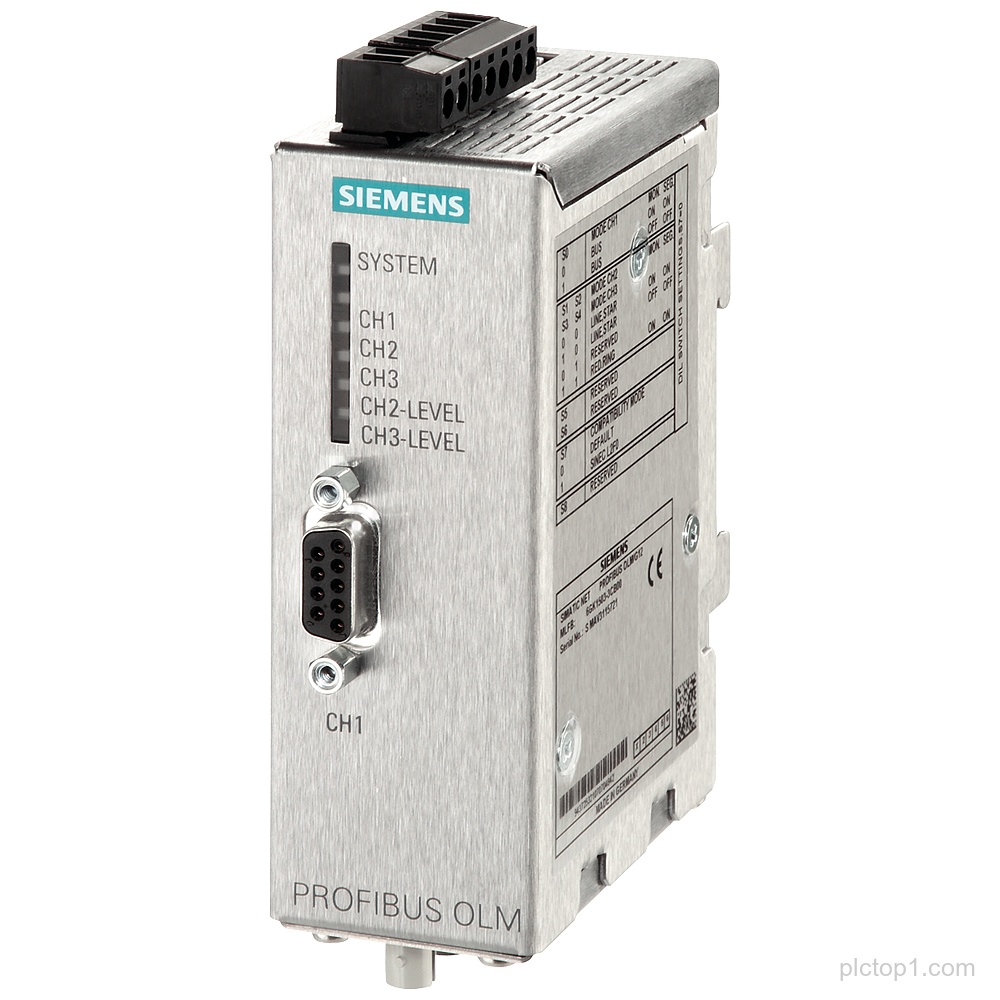

SIPLUS NET OLM/G11-1300 V4.0 optical link module with part number 6AG1503-2CC00-2AA0, based on 6GK1503-2CC00, with conformal coating for -25…+60 °C and an optical link length of 1300 mm.
Detailed Parameters
Part number:6AG1503-2CC00-2AA0
Product family / designation:SIPLUS NET OLM/G11-1300 V4.0
Based on:6GK1503-2CC00
Conformal coating:Yes
Operating temperature:-25…+60 °C
Module type:Optical link module
RS-485:1
Glass fiber optic cable:1
BFOC sockets:2
Shaft length:1300 Nm
Large distances:1300 Nm shaft length for large distances
Signaling contact:Provided
Test port:Provided
Engineering Context
The SIPLUS NET OLM/G11-1300 V4.0 provides an optical link module design based on 6GK1503-2CC00 with conformal coating.
The module is configured with 1 RS-485 and 1 glass fiber optic cable using 2 BFOC sockets.
Signaling contact and a test port are included for the optical link module.
FAQ
1. What is the product designation and function of 6AG1503-2CC00-2AA0?
6AG1503-2CC00-2AA0 is a SIPLUS NET OLM/G11-1300 V4.0 optical link module.
2. Which base product is SIPLUS NET OLM/G11-1300 V4.0 based on?
It is based on 6GK1503-2CC00.
3. What signal and fiber interfaces are provided?
It provides 1 RS-485 and 1 glass fiber optic cable with 2 BFOC sockets.
4. What is the conformal coating and operating temperature range?
It has conformal coating and is specified for -25…+60 °C.
5. What distance-related length and interfaces for testing are included?
It has 1300 Nm shaft length for large distances and includes a signaling contact and test port.
