Product information

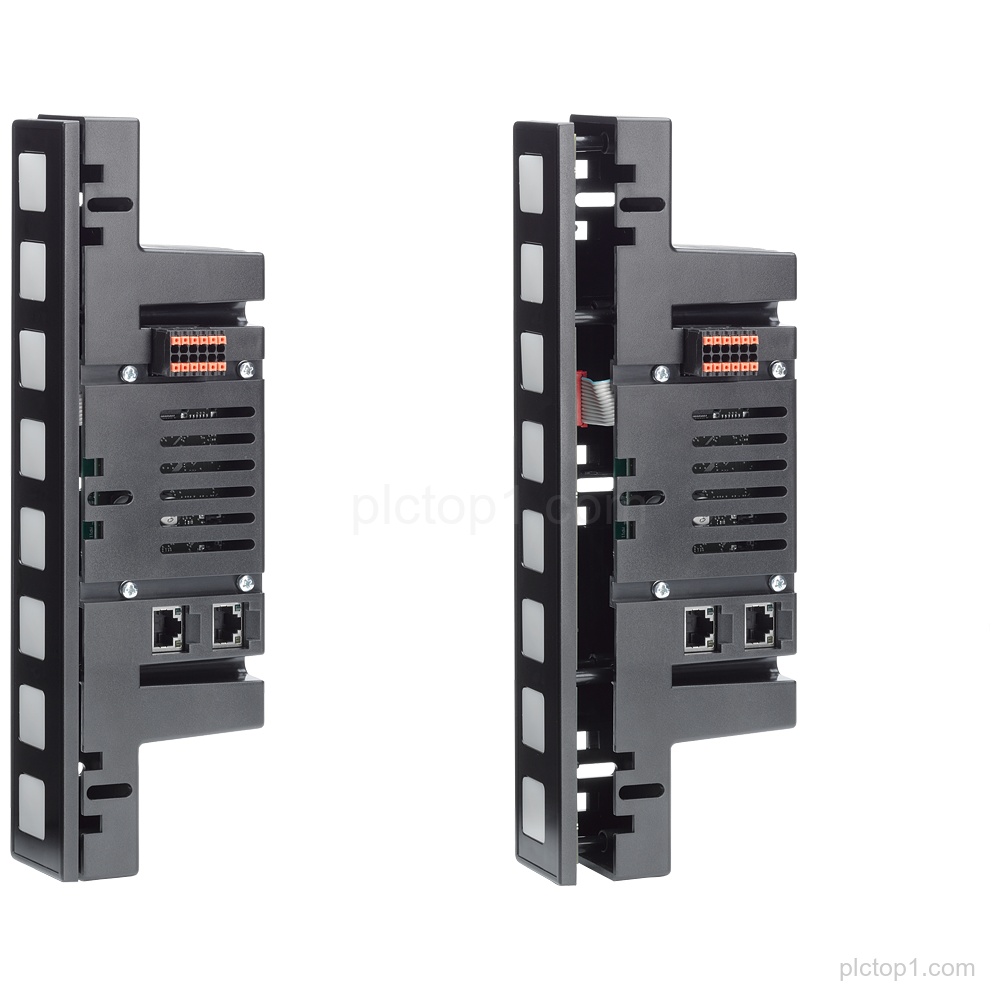

SIMATIC HMI KP8 PN LX short-stroke switches long (Part Number: 6AV2127-1AB00-0LX1) provides PN interfaces, black neutral design, and 8 configurable DI/DO pins for parameterization as of STEP 7 V5.5.
Detailed Parameters
Product designation:SIMATIC HMI KP8 PN LX, short-stroke switches long
Part number:6AV2127-1AB00-0LX1
Design:black neutral design
PN interface:PN interfaces
Switches:8 short-stroke switches long
Sheet thickness:1-6 mm
Digital pins:8 configurable DI/DO pins
Voltage:24 V DC
Voltage through-wiring:24 V DC can be looped through
Parameterization:parameterizable as of STEP 7 V5.5
Availability expectation:expected to be available as of June 2026
Engineering Context
The SIMATIC HMI KP8 PN LX short-stroke switches long supports PN interfaces and provides 8 configurable DI/DO pins.
The device is designed for 1-6 mm sheet thickness and supports 24 V DC looping through.
Parameterization is specified as available as of STEP 7 V5.5.
FAQ
1. What is the part number and product designation for this device?
The part number is 6AV2127-1AB00-0LX1 and the product designation is SIMATIC HMI KP8 PN LX short-stroke switches long.
2. How many short-stroke switches long does the SIMATIC HMI KP8 PN LX include?
It includes 8 short-stroke switches long.
3. What sheet thickness range is specified?
The specified sheet thickness range is 1-6 mm.
4. How many DI/DO pins are configurable?
There are 8 configurable DI/DO pins.
5. What supply/looping voltage is specified?
The device uses 24 V DC and 24 V DC can be looped through.
6. As of which STEP 7 version is parameterization specified?
Parameterization is specified as of STEP 7 V5.5.
