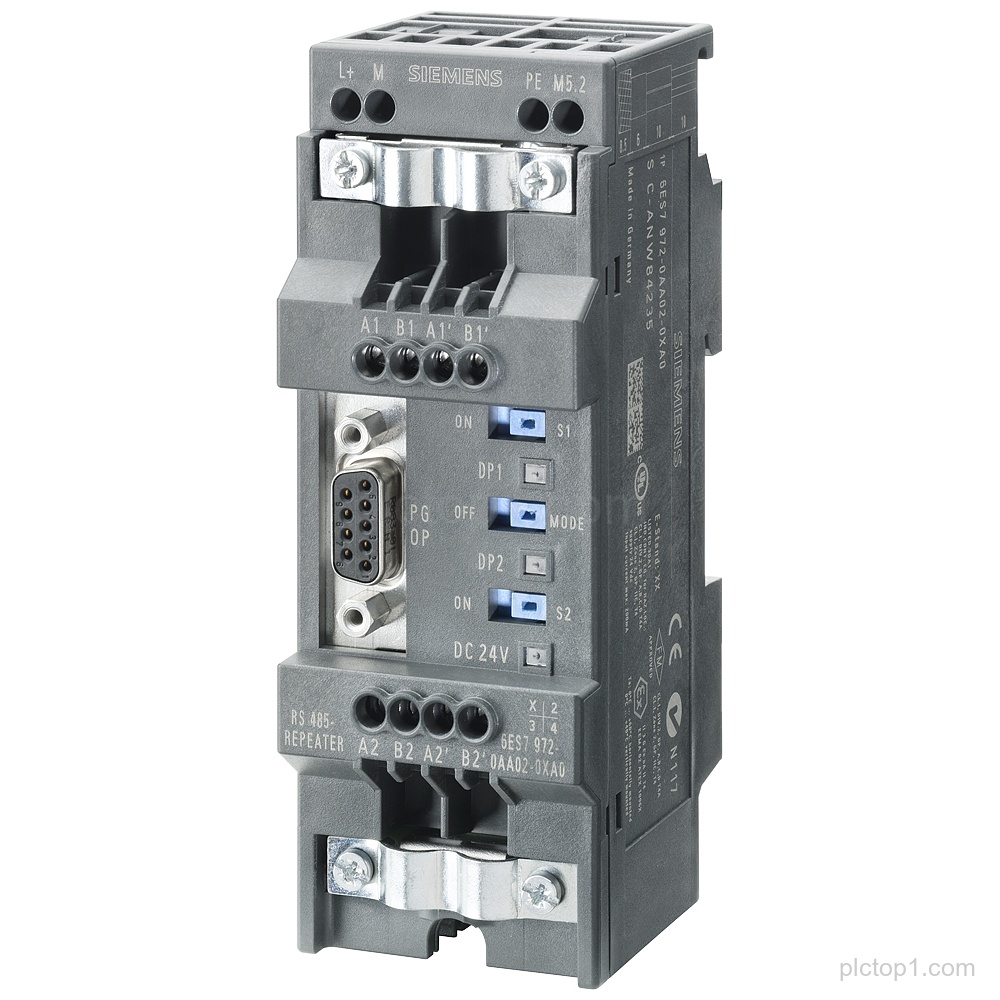

SIMATIC DP RS485 repeater, part number 6ES7972-0AA02-0XA0, for connection of PROFIBUS/MPI bus systems with max. 31 nodes and max. baud rate 12 Mbit/s; degree of protection IP20 with improved user handling.
Detailed Parameters
Bus system:PROFIBUS/MPI
Max. nodes:31
Max. baud rate:12 Mbit/s
Degree of protection:IP20
Product family / designation:SIMATIC DP, RS485 repeater
Product handling:Improved user handling
Engineering Context
Use the SIMATIC DP RS485 repeater for connection of PROFIBUS/MPI bus systems.
The repeater is specified for up to 31 nodes with a maximum baud rate of 12 Mbit/s.
The device has a degree of protection IP20 and is intended for environments consistent with that protection level.
FAQ
1. What is the designation of the product with part number 6ES7972-0AA02-0XA0?
SIMATIC DP, RS485 repeater.
2. For which bus systems is the RS485 repeater intended?
For connection of PROFIBUS/MPI bus systems.
3. What is the maximum number of nodes supported?
Max. 31 nodes.
4. What is the maximum baud rate?
Max. baud rate 12 Mbit/s.
5. What is the degree of protection?
IP20.
6. Is there any stated feature related to usability?
Improved user handling.
