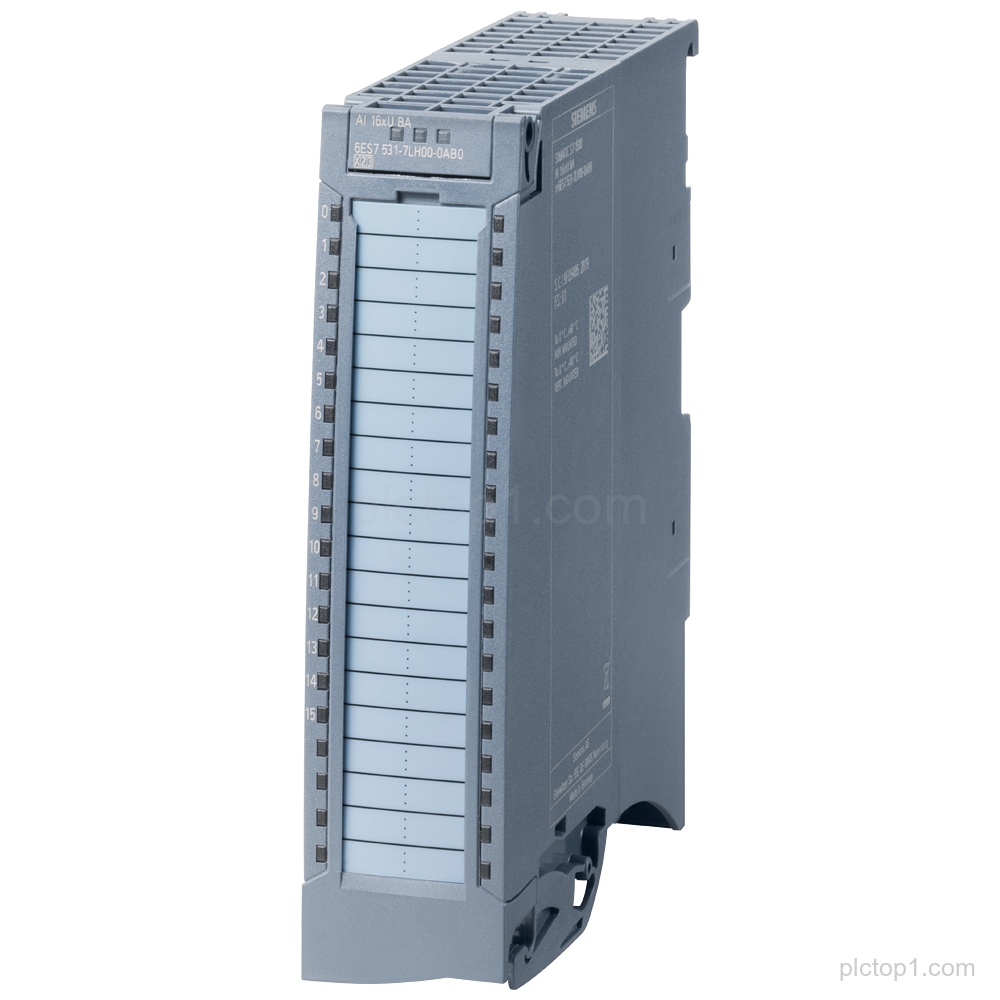

SIMATIC S7-1500 AI 16xU BA analog input module (Part number: 6ES7531-7LH00-0AB0) provides 16 channels in groups of 16, with diagnostics and hardware interrupts.
Detailed Parameters
Product family:SIMATIC S7-1500
Module type:analog input module AI 16xU BA
Resolution:16-bit
Resolution accuracy:0.5%
Channel count:16
Channel arrangement:16 channels in groups of 16
Common mode voltage:4 V DC
Diagnostics:provided
Hardware interrupts:provided
Delivery includes:infeed element, shield bracket and shield terminal
Front connector:to be ordered separately; screw terminals or push-in
Engineering Context
The SIMATIC S7-1500 AI 16xU BA provides analog input functionality with 16-bit resolution and 0.5% accuracy.
The module supports diagnostics and hardware interrupts for the analog input channels.
The module is supplied with infeed element and shield components, while the front connector type requires separate ordering.
FAQ
1. What product family and module type does 6ES7531-7LH00-0AB0 belong to?
6ES7531-7LH00-0AB0 belongs to SIMATIC S7-1500 and is an analog input module AI 16xU BA.
2. How many analog input channels are available on the AI 16xU BA module?
The module provides 16 channels in groups of 16.
3. What resolution and resolution accuracy are specified for 6ES7531-7LH00-0AB0?
It has 16-bit resolution with 0.5% resolution accuracy.
4. Is common mode voltage specified for the module?
Yes. The common mode voltage is specified as 4 V DC.
5. Does the module include diagnostics and hardware interrupts?
Yes. Diagnostics and hardware interrupts are provided.
6. What is included in the delivery, and what must be ordered separately?
Delivery includes infeed element, shield bracket and shield terminal; the front connector (screw terminals or push-in) must be ordered separately.
