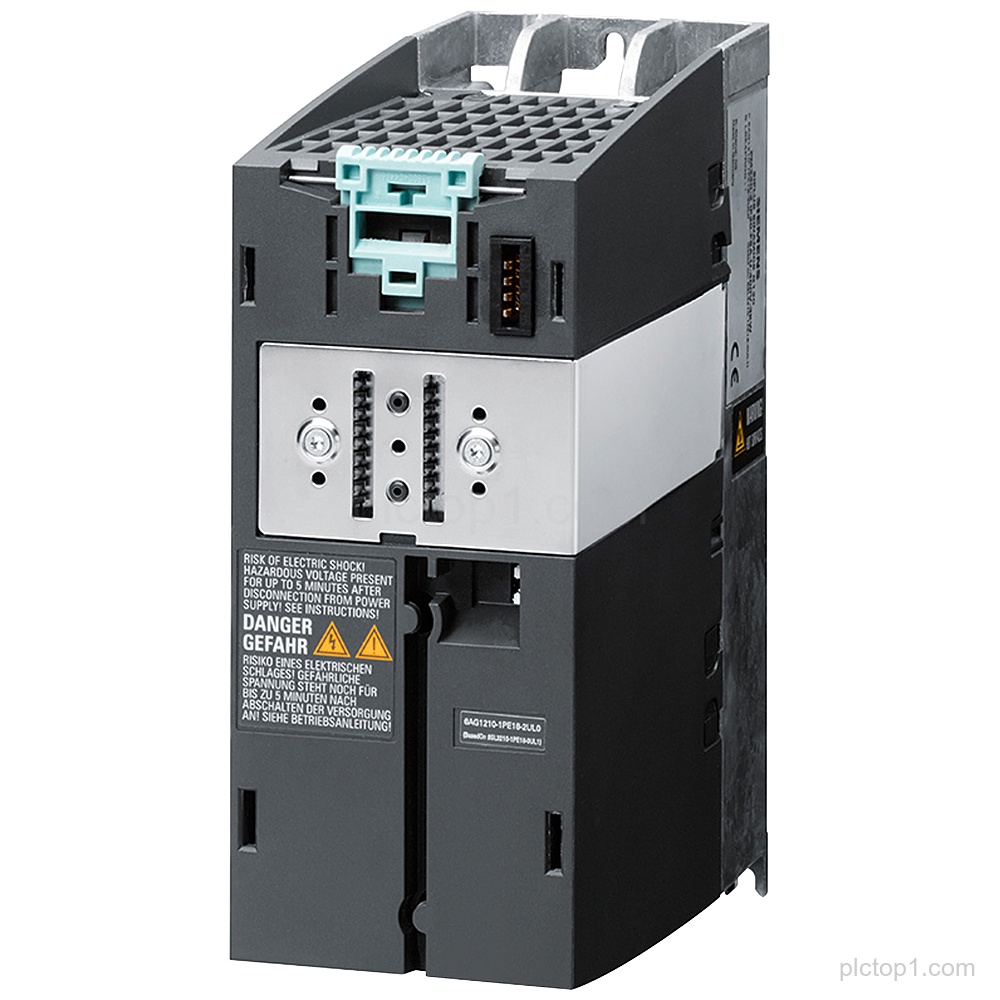

SIPLUS G120 PM240-2 with part number 6AG1210-1PE14-2UL1 is a design FSA-U power unit with conformal coating and integrated braking chopper for 380-480 V 3 AC (47-63 Hz).
Detailed Parameters
Based on:6SL3210-1PE14-3UL1
Design:FSA
Type designation:FSA-U-400V
Conformal coating:with conformal coating
Integrated braking chopper:integrated braking chopper
Degree of protection:IP20
Operating temperature:-20…+50 °C
Cooling/filters:unfiltered
Rated power:1.5 kW
Input voltage:380-480 V 3 AC +10/-10%
Line frequency:47-63 Hz
High overload:1.1 kW at 200% 3 s, 150% 57 s, 100% 240 s
Low overload:1.5 kW at 150% 3 s, 110% 57 s, 100% 240 s
Dimensions (HxWxD):196x 73x 165 (HxWxD)
Operating unit:without CU and operating unit released as of CU FW version V4.7 HF8
Engineering Context
SIPLUS G120 PM240-2 (FSA-U-400V) provides a 380-480 V 3 AC power rating with an integrated braking chopper.
The unfiltered design with IP20 degree of protection is intended for operation in the -20…+50 °C range.
Overload performance is specified for high overload and low overload operating points tied to percentage and duration.
FAQ
1. What is the rated power and voltage range for part number 6AG1210-1PE14-2UL1?
Rated power is 1.5 kW, for 380-480 V 3 AC +10/-10%.
2. Does the product include an integrated braking chopper?
Yes, it includes an integrated braking chopper.
3. What is the specified degree of protection and operating temperature range?
Degree of protection is IP20 and the operating temperature range is -20…+50 °C.
4. Is the device filtered or unfiltered?
It is unfiltered.
5. What overload ratings are provided?
High overload: 1.1 kW at 200% 3 s, 150% 57 s, 100% 240 s; low overload: 1.5 kW at 150% 3 s, 110% 57 s, 100% 240 s.
6. What are the physical dimensions and design designation?
Dimensions are 196x 73x 165 (HxWxD) and the design designation is FSA.
7. What is stated regarding CU and firmware version?
It is stated as without CU and operating unit released as of CU FW version V4.7 HF8.
