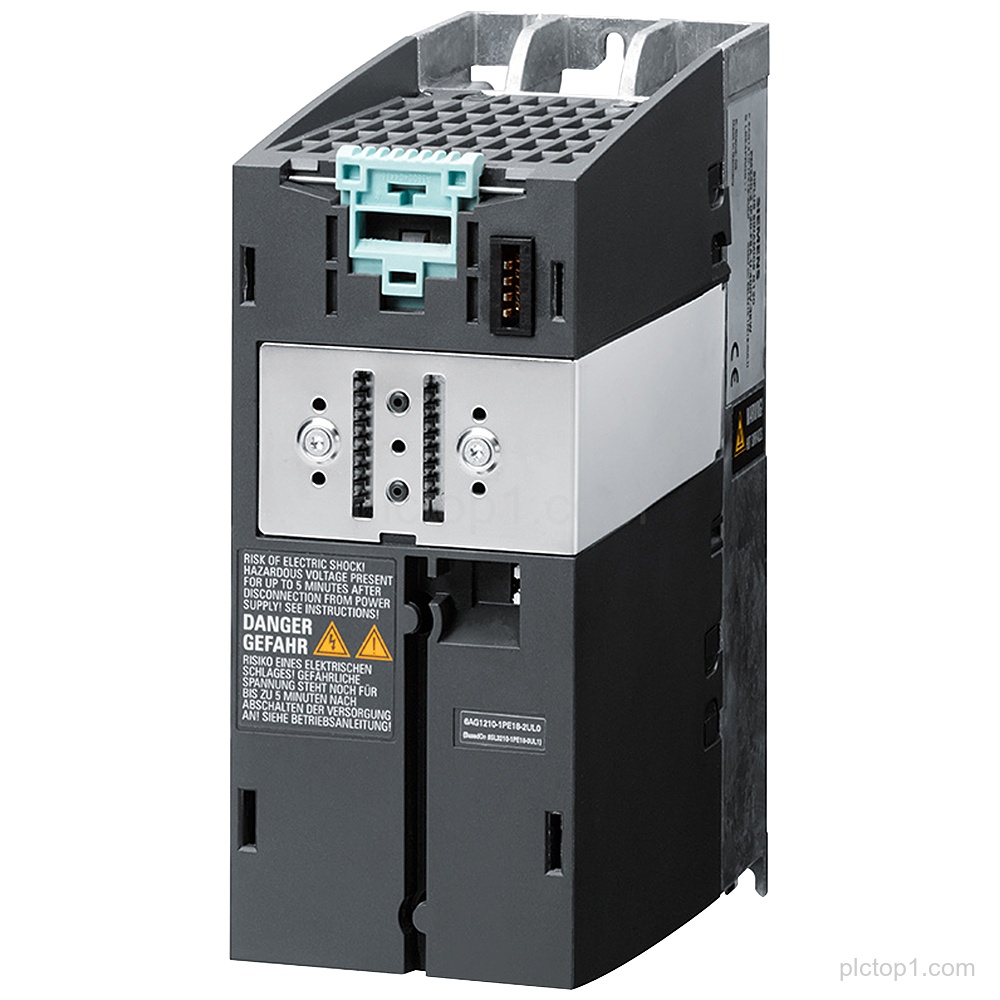

SIPLUS G120 PM240-2 frequency converter 6AG1210-1PE18-2UL1 for 380-480 V 3 AC supply, unfiltered with integrated braking chopper and conformal coating.
Detailed Parameters
Based on:6SL3210-1PE18-0UL1
Design:FSA
Conformal coating:Yes
Filtering:unfiltered
Integrated braking chopper:Yes
Degree of protection:IP20
Operating ambient temperature:-20…+50 °C
Supply voltage:380-480 V 3 AC
Supply voltage tolerance:+10/-10%
Line frequency:47-63 Hz
Power:3 kW
High overload:2.2 kW at 200% 3 s, 150% 57 s, 100% 240 s
Low overload:3 kW at 150% 3 s, 110% 57 s, 100% 240 s
Dimensions (HxWxD):196x 73x 165 (HxWxD)
Without CU and operating unit:Yes
CU firmware release:released as of CU FW version V4.7 HF8
Engineering Context
SIPLUS G120 PM240-2 is a frequency converter design FSA with integrated braking chopper for 380-480 V 3 AC applications.
The unit is unfiltered and provided with conformal coating, with IP20 degree of protection without CU and operating unit.
Overload performance is specified as high overload and low overload with time-current relationships.
FAQ
1. What is the SIPLUS G120 PM240-2 part number and design designation?
The part number is 6AG1210-1PE18-2UL1 and the design designation is FSA.
2. What power and supply voltage range are specified for this frequency converter?
Power is 3 kW with a supply voltage of 380-480 V 3 AC and a line frequency of 47-63 Hz (+10/-10% tolerance).
3. Does the PM240-2 include an integrated braking chopper and is it unfiltered?
Yes, it includes an integrated braking chopper and it is unfiltered.
4. What is the specified operating ambient temperature range and degree of protection?
The operating ambient temperature range is -20…+50 °C and the degree of protection is IP20.
5. What are the high overload and low overload values and durations?
High overload: 2.2 kW at 200% for 3 s, 150% for 57 s, and 100% for 240 s; Low overload: 3 kW at 150% for 3 s, 110% for 57 s, and 100% for 240 s.
6. Is CU and the operating unit included, and what is the CU firmware release condition?
The unit is without CU and operating unit, and it is released as of CU FW version V4.7 HF8.
