Product information

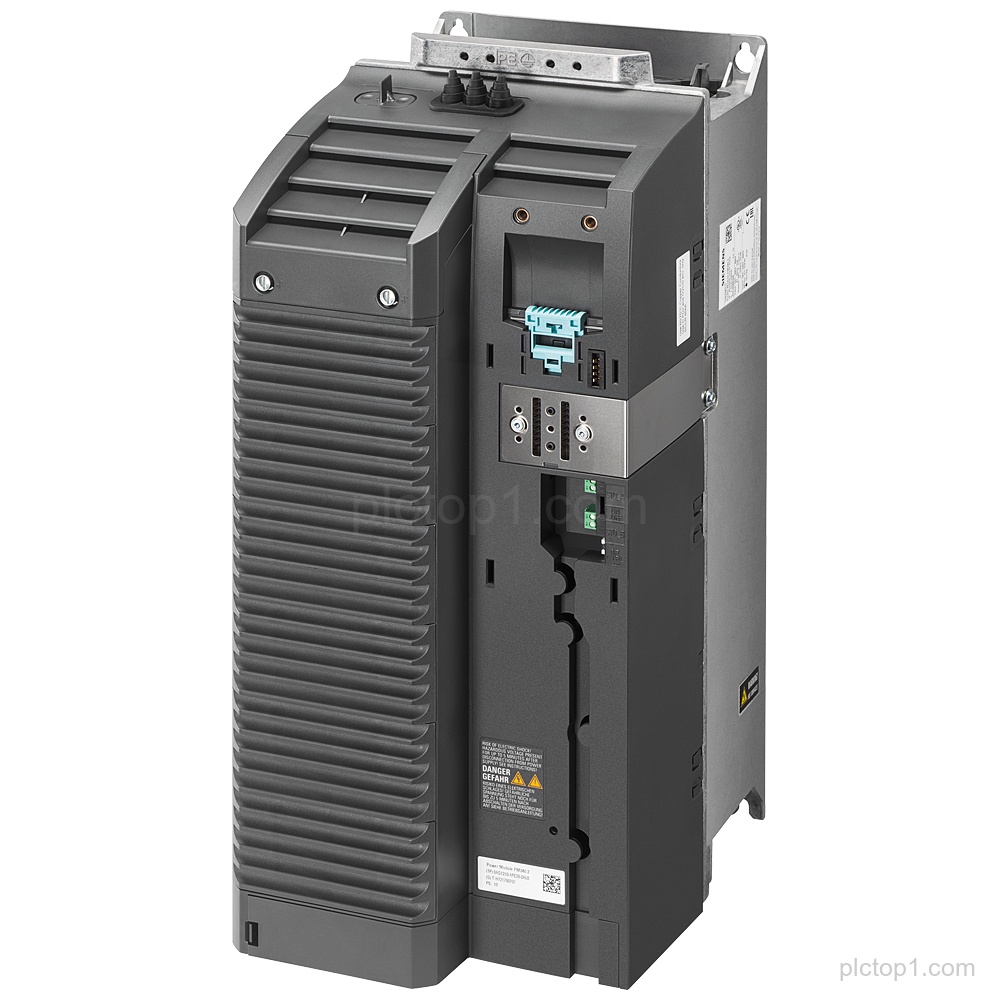

SIPLUS G120 PM240-2 FSD-A-400V drive (Part Number: 6AG1210-1PE26-2AL0) based on 6SL3210-1PE26-0AL0 with conformal coating, integrated class A filter, integrated braking chopper, and IP20 degree of protection without CU and operating unit. Released as of CU FW version V4.7 HF8.
Detailed Parameters
Based on:6SL3210-1PE26-0AL0
Conformal coating:Yes
Design:FSD
Degree of protection:IP20 (without CU and operating unit)
Operating temperature range:-20…+50 °C
Supply voltage:380-480 V
Supply system:3 AC
Voltage tolerance:+10/-20%
Mains frequency:47-63 Hz
Rated power:30 kW
Overload high:22 kW at 200% 3 s; 150% 57 s; 100% 240 s
Overload low:30 kW at 150% 3 s; 110% 57 s; 100% 240 s
Integrated filter:class A filter
Integrated braking chopper:Yes
Dimensions HxWxD:472x 200x 237 (HxWxD)
Operating unit:without CU and operating unit
CU FW version release:V4.7 HF8
Engineering Context
SIPLUS G120 PM240-2 drive is provided in design FSD with integrated class A filter and integrated braking chopper.
The drive is specified for 380-480 V 3 AC with +10/-20% voltage tolerance and 47-63 Hz mains frequency.
IP20 degree of protection is specified without CU and operating unit, and the product is released as of CU FW version V4.7 HF8.
FAQ
1. What is the product family and designation for Part Number 6AG1210-1PE26-2AL0?
SIPLUS G120 PM240-2 FSD-A-400V based on 6SL3210-1PE26-0AL0.
2. Does this drive include an integrated filter and braking chopper?
Yes, it includes an integrated class A filter and an integrated braking chopper.
3. What degree of protection is specified for the drive?
IP20 (without CU and operating unit).
4. What operating temperature range is specified?
-20…+50 °C.
5. What supply voltage, system, and mains frequency are specified?
380-480 V, 3 AC, +10/-20% voltage tolerance, and 47-63 Hz.
6. What are the specified overload performance values?
High overload: 22 kW at 200% 3 s; 150% 57 s; 100% 240 s. Low overload: 30 kW at 150% 3 s; 110% 57 s; 100% 240 s.
