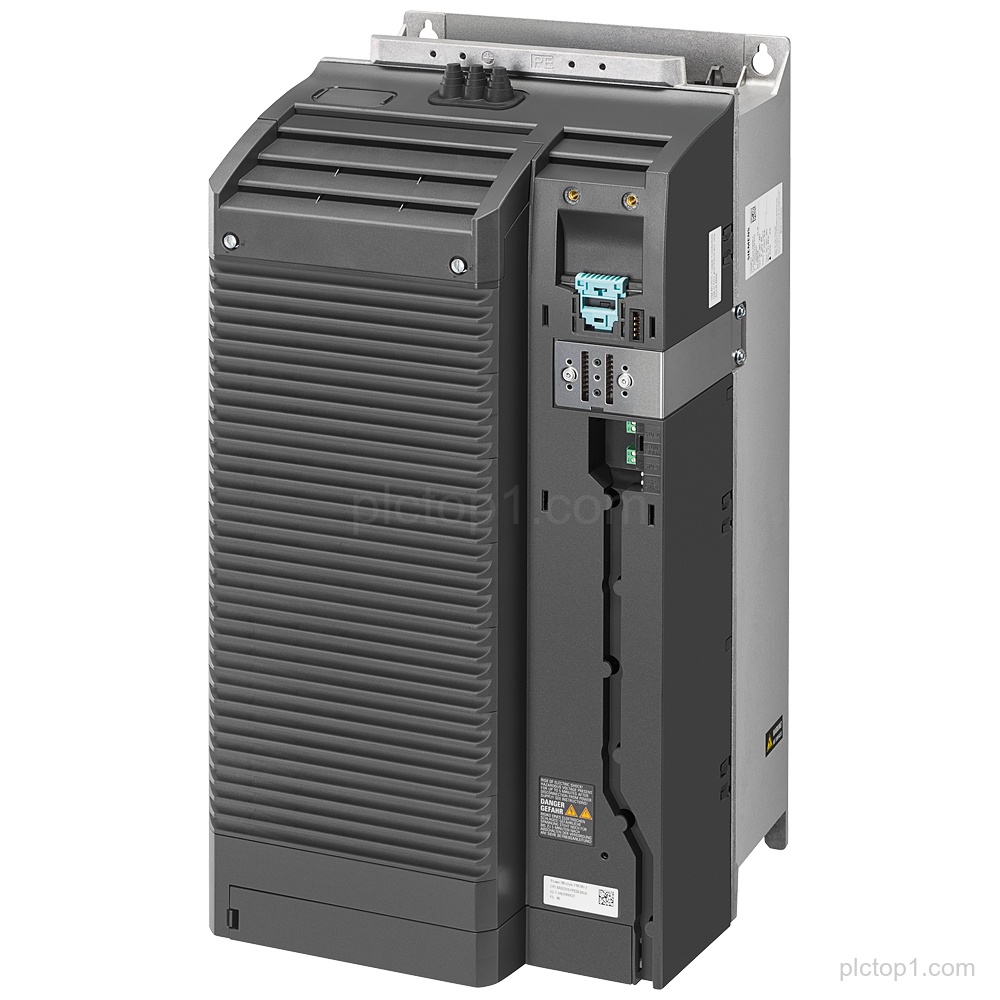

SIPLUS G120 PM240-2 FSE design frequency converter, part number 6AG1210-1PE28-2AL0, with integrated class A filter and integrated braking chopper, for operation in the -20…+50 °C range.
Detailed Parameters
Based on:6SL3210-1PE28-8AL0
Conformal coating:with conformal coating
Design:FSE
Degree of protection:IP20
Ambient operating temperature:-20…+50 °C
Integrated filter:integrated class A filter
Integrated braking chopper:integrated braking chopper
Supply voltage:380-480 V
Supply phase:3 AC
Supply voltage tolerance:+10/-20%
Line frequency:47-63 Hz
Power (high overload):45 kW at 200% 3 s, 150% 57 s, 100% 240 s
Power (low overload):45 kW at 150% 3 s, 110% 57 s, 100% 240 s
Rated power:45 kW
Dimensions (HxWxD):551 x 275 x 237 (HxWxD)
Operating unit / CU note:without CU and operating unit released as of CU FW version V4.7 HF8
Engineering Context
SIPLUS G120 PM240-2 FSE design is specified as based on 6SL3210-1PE28-8AL0 with conformal coating.
The unit includes an integrated class A filter and an integrated braking chopper for operation at 380-480 V 3 AC within 47-63 Hz.
The degree of protection is IP20 and the operating unit is released as of CU FW version V4.7 HF8.
FAQ
1. What is the product family and designation for part number 6AG1210-1PE28-2AL0?
SIPLUS G120 PM240-2 FSE design.
2. Which supply voltage and frequency range are specified?
380-480 V 3 AC with +10/-20% tolerance and 47-63 Hz.
3. Does the device include an integrated filter and braking chopper?
Yes—integrated class A filter and integrated braking chopper are specified.
4. What is the specified overload performance and rated power?
Rated power: 45 kW; high overload: 37 kW at 200% 3 s, 150% 57 s, 100% 240 s; low overload: 45 kW at 150% 3 s, 110% 57 s, 100% 240 s.
5. What degree of protection and ambient operating temperature are specified?
Degree of protection: IP20; ambient operating temperature: -20…+50 °C.
6. Is the operating unit included and are there firmware requirements?
It is specified without CU and the operating unit is released as of CU FW version V4.7 HF8.
