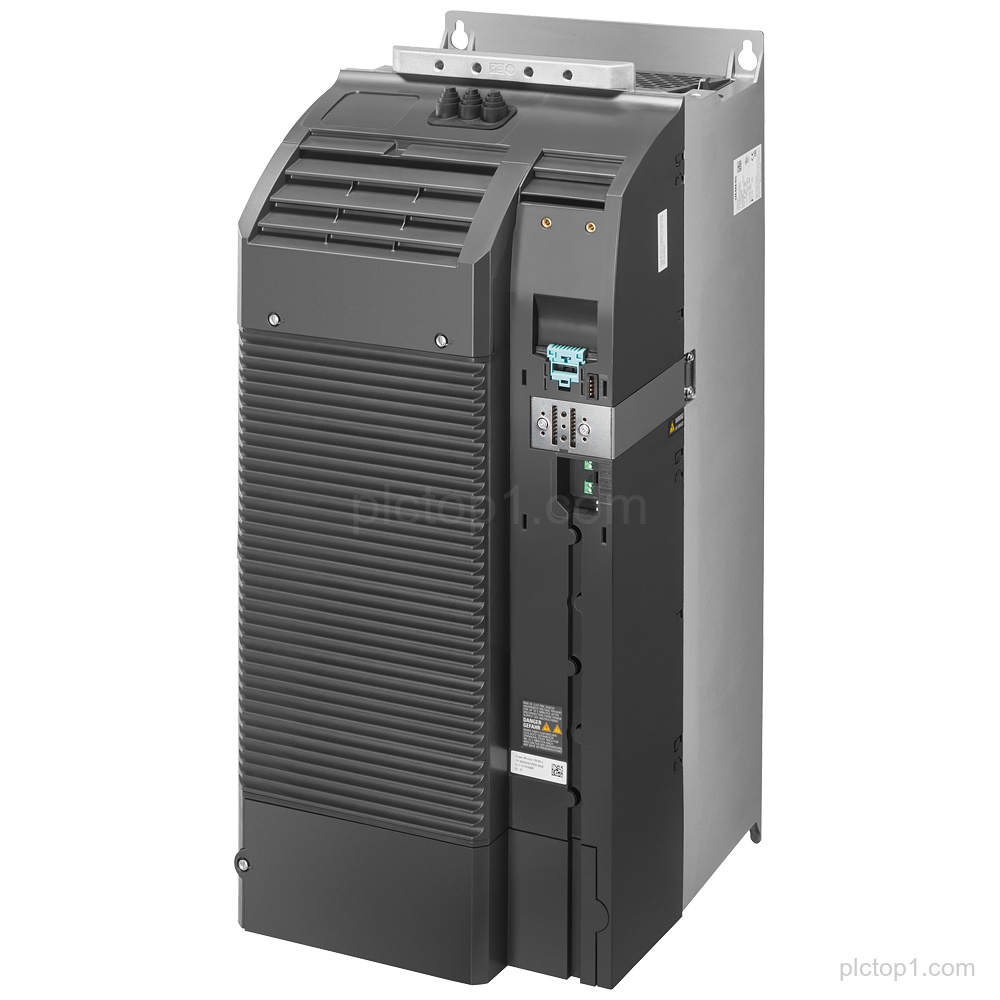

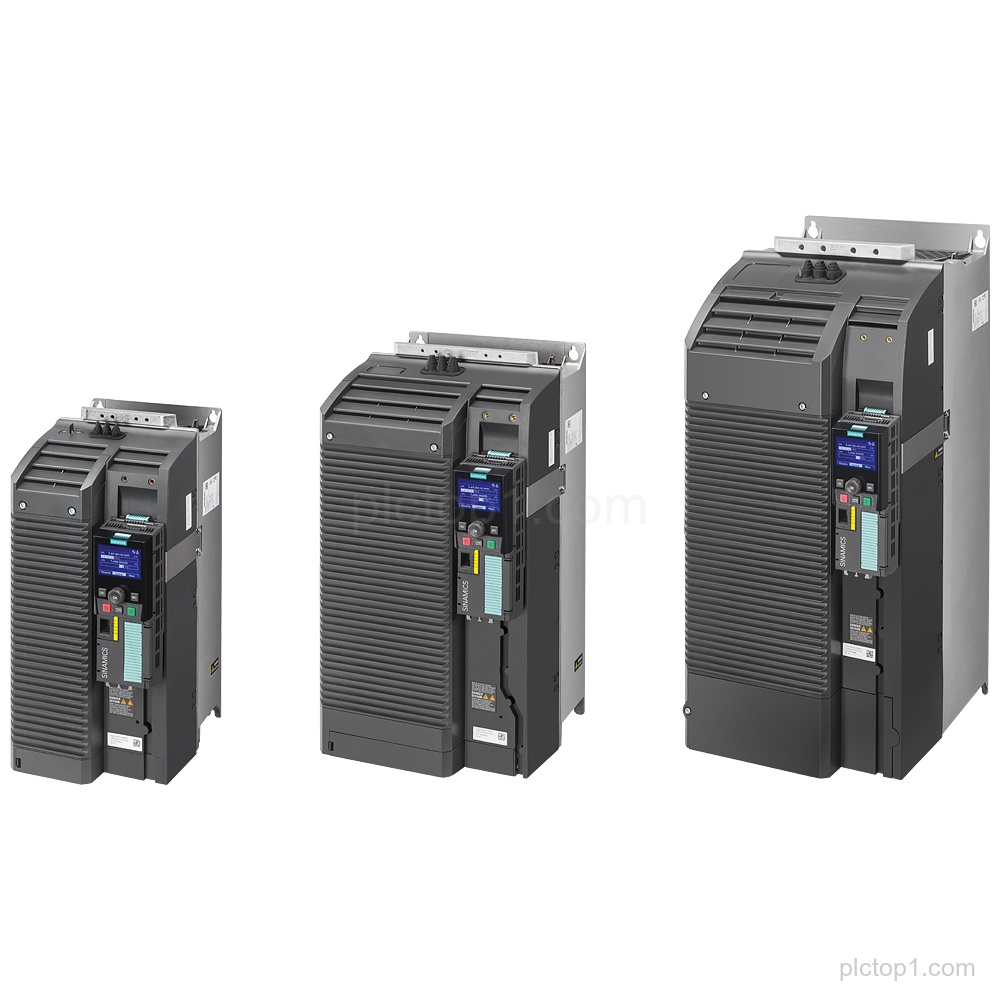

SIPLUS G120 PM240-2 frequency converter, part number 6AG1210-1PE31-2AL0, based on 6SL3210-1PE31-5AL0, with conformal coating and integrated class A filter and braking chopper for 380-480 V 3 AC applications.
Detailed Parameters
Product designation:SIPLUS G120 PM240-2
Based on:6SL3210-1PE31-5AL0
Conformal coating:with conformal coating
Integrated filter:integrated class A filter
Integrated braking chopper:with integrated braking chopper
Rated supply:380-480 V
Supply type:3 AC
Voltage tolerance:+10/-20%
Frequency range:47-63 Hz
Operating temperature:-20…+50 °C
Power high overload:55 kW at 200% 3 s; 150% 57 s; 100% 240 s
Power low overload:75 kW at 150% 3 s; 110% 57 s; 100% 240 s
Dimensions (HxWxD):708x 305x 357 (HxWxD)
Design:FSF design
Degree of protection:IP20 without CU and operating unit released as of CU FW version V4.7 HF8
Engineering Context
The SIPLUS G120 PM240-2 variant is specified with integrated class A filter and integrated braking chopper for operation on 380-480 V 3 AC within 47-63 Hz.
The unit is provided with FSF design and conformal coating for the stated operating temperature range of -20…+50 °C.
Overload capability is specified as both power high overload and power low overload with defined percentage levels and time durations.
FAQ
1. What is the product designation of 6AG1210-1PE31-2AL0?
SIPLUS G120 PM240-2.
2. What is the basis reference for this SIPLUS G120 PM240-2?
It is based on 6SL3210-1PE31-5AL0.
3. Does 6AG1210-1PE31-2AL0 include an integrated filter and braking chopper?
Yes, it includes an integrated class A filter and an integrated braking chopper.
4. What supply and frequency range are specified for 6AG1210-1PE31-2AL0?
380-480 V 3 AC with +10/-20% and 47-63 Hz.
5. What operating temperature range is specified?
-20…+50 °C.
6. What degree of protection is specified?
IP20 without CU and operating unit released as of CU FW version V4.7 HF8.
