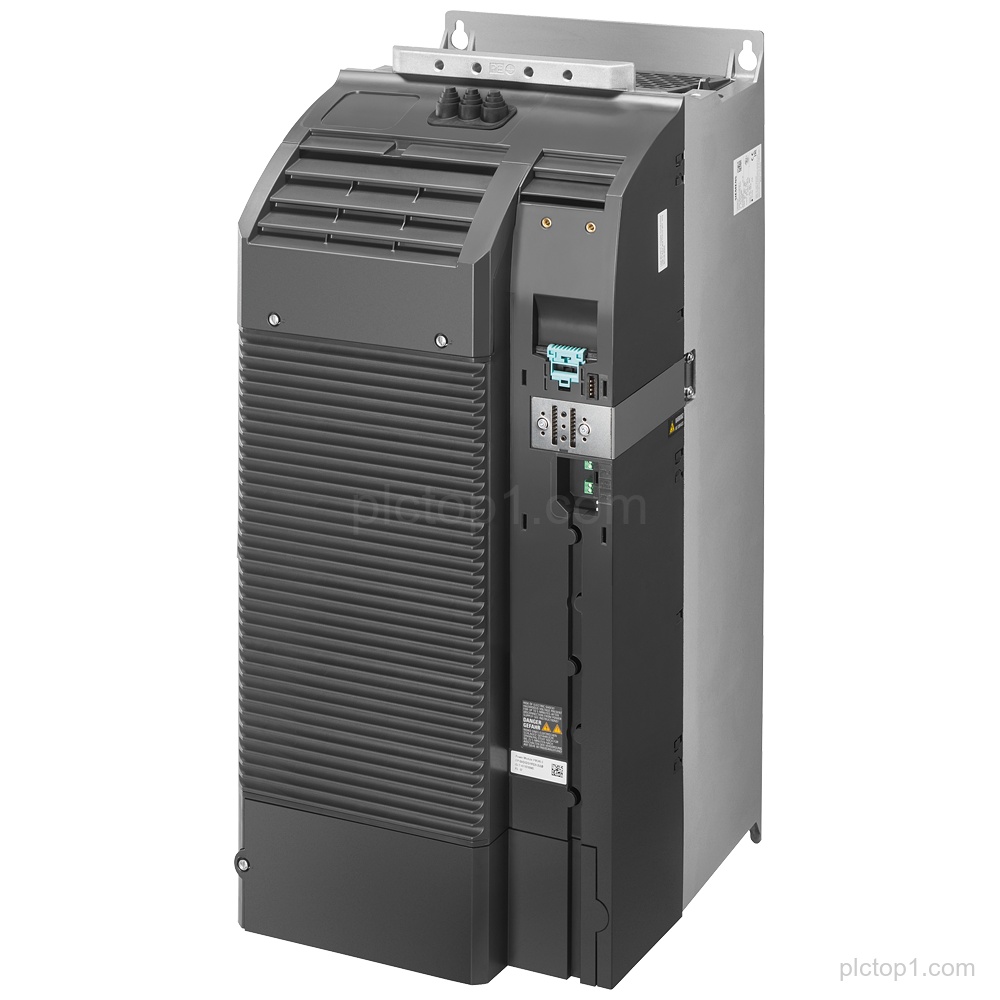

SIPLUS G120 PM240-2 based on 6AG1210-1PE31-2UL0 with integrated braking chopper for operation in the range -20…+50 °C.
Detailed Parameters
Part number:6AG1210-1PE31-2UL0
Series:SIPLUS G120
Device designation:PM240-2
Based on:6SL3210-1PE31-5UL0
Conformal coating:Yes
Degree of protection:IP20
Integrated braking chopper:Yes
Operating temperature range:-20…+50 °C
Filter:unfiltered
Supply voltage:380-480 V 3 AC +10/-20%
Supply frequency:47-63 Hz
Power:75 kW
High overload:55 kW at 200% 3 s, 150% 57 s, 100% 240 s
Low overload:75 kW at 150% 3 s, 110% 57 s, 100% 240 s
Dimensions (HxWxD):708x 305x 357
Design:FSF
Operating unit:without CU and operating unit released as of CU FW version V4.7 HF8
Engineering Context
The SIPLUS G120 PM240-2 is based on 6SL3210-1PE31-5UL0 and includes conformal coating.
The unit is unfiltered and provides an integrated braking chopper for the specified 380-480 V 3 AC supply.
The product is supplied as FSF design with degree of protection IP20 without CU and operating unit released as of CU FW version V4.7 HF8.
FAQ
1. What is the rated power and supply conditions for 6AG1210-1PE31-2UL0?
75 kW with 380-480 V 3 AC +10/-20% and 47-63 Hz.
2. Does 6AG1210-1PE31-2UL0 include a braking chopper?
Yes, it is specified with an integrated braking chopper.
3. What is the overload capability of 6AG1210-1PE31-2UL0?
High overload: 55 kW at 200% 3 s, 150% 57 s, 100% 240 s; Low overload: 75 kW at 150% 3 s, 110% 57 s, 100% 240 s.
4. What is the operating temperature range and degree of protection?
Operating temperature range is -20…+50 °C and degree of protection is IP20.
5. Is the product filtered and what is included or excluded regarding CU and operating unit?
It is unfiltered and is specified as without CU; the operating unit is released as of CU FW version V4.7 HF8.
