Product information

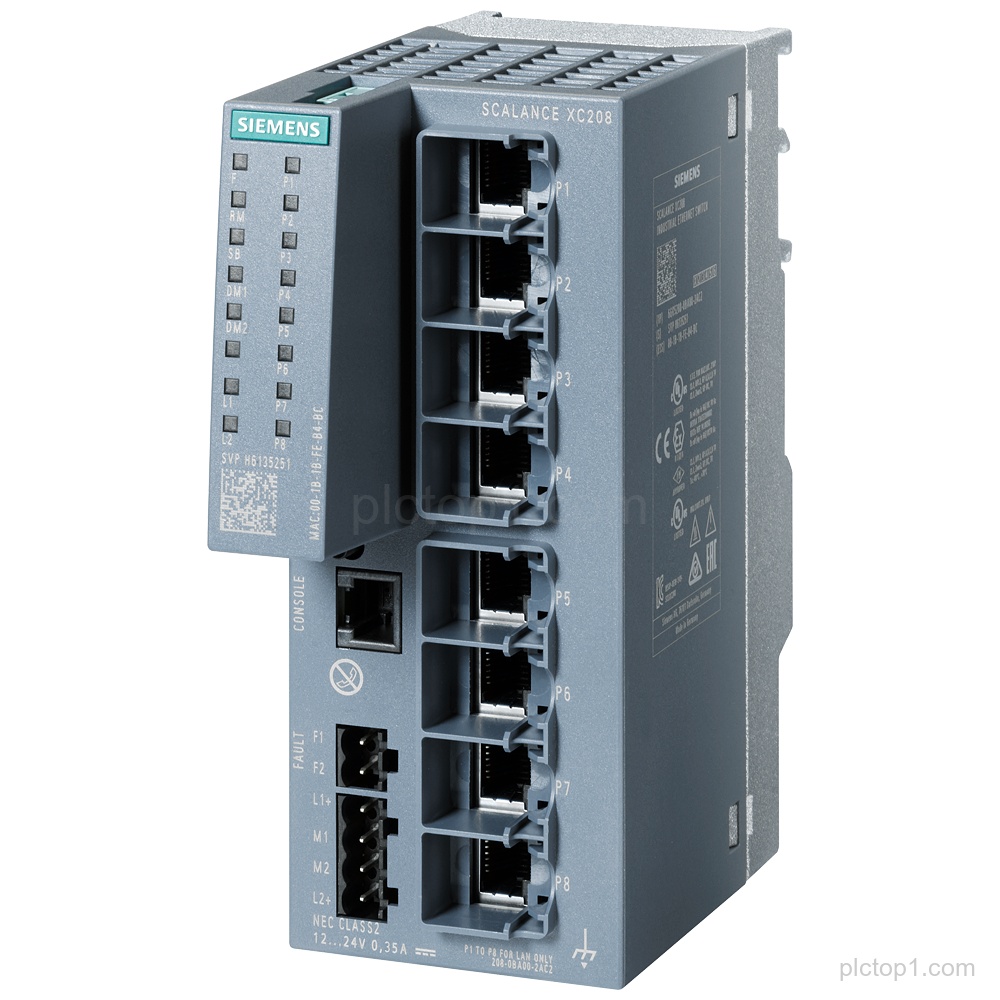

SIPLUS NET SCALANCE XC208 (Part number: 6AG1208-0BA00-7AC2) is a manageable layer 2 IE switch based on 6GK5208-0BA00-2AC2 with conformal coating, suitable for PROFINET IO device applications via the C-Plug slot.
Detailed Parameters
Part number:6AG1208-0BA00-7AC2
Based on:6GK5208-0BA00-2AC2
Product type:SIPLUS NET SCALANCE XC208
Conformal coating:Conformal coating
Operating temperature range:-40…+70 °C
Switch type:Manageable layer 2 IE switch
Port configuration:8x 10/100 Mbps RJ45 ports
Console port:1x console port
Diagnostics:Diagnostics LEDs
Redundant power supply temperature range (diagnostics):-40 °C to +70 °C
Redundancy functions / features:RSTP, VLAN, etc.
Mounting:DIN rail/S7 mounting rail/wall office
PROFINET IO device:Ethernet/IP-compliant C-Plug slot
Engineering Context
The SIPLUS NET SCALANCE XC208 is a manageable layer 2 IE switch intended to provide switching with an 8x 10/100 Mbps RJ45 port set and a 1x console port.
Redundancy functions include RSTP and VLAN features as indicated for the product.
The PROFINET IO device Ethernet/IP-compliant C-Plug slot supports the intended integration as provided.
FAQ
1. What is the switch type for 6AG1208-0BA00-7AC2?
It is specified as a manageable layer 2 IE switch.
2. Which ports are available on the 6AG1208-0BA00-7AC2?
It has 8x 10/100 Mbps RJ45 ports and 1x console port.
3. What temperature range is specified for 6AG1208-0BA00-7AC2?
The specified range is -40…+70 °C.
4. What diagnostics are provided on 6AG1208-0BA00-7AC2?
Diagnostics LEDs are provided, with a redundant power supply temperature range of -40 °C to +70 °C indicated for the diagnostics.
5. Which redundancy functions/features are listed for the product?
RSTP and VLAN are listed, together with additional features indicated by ‘etc.’
6. How is 6AG1208-0BA00-7AC2 intended to be integrated for PROFINET IO device applications?
It includes an Ethernet/IP-compliant C-Plug slot.
