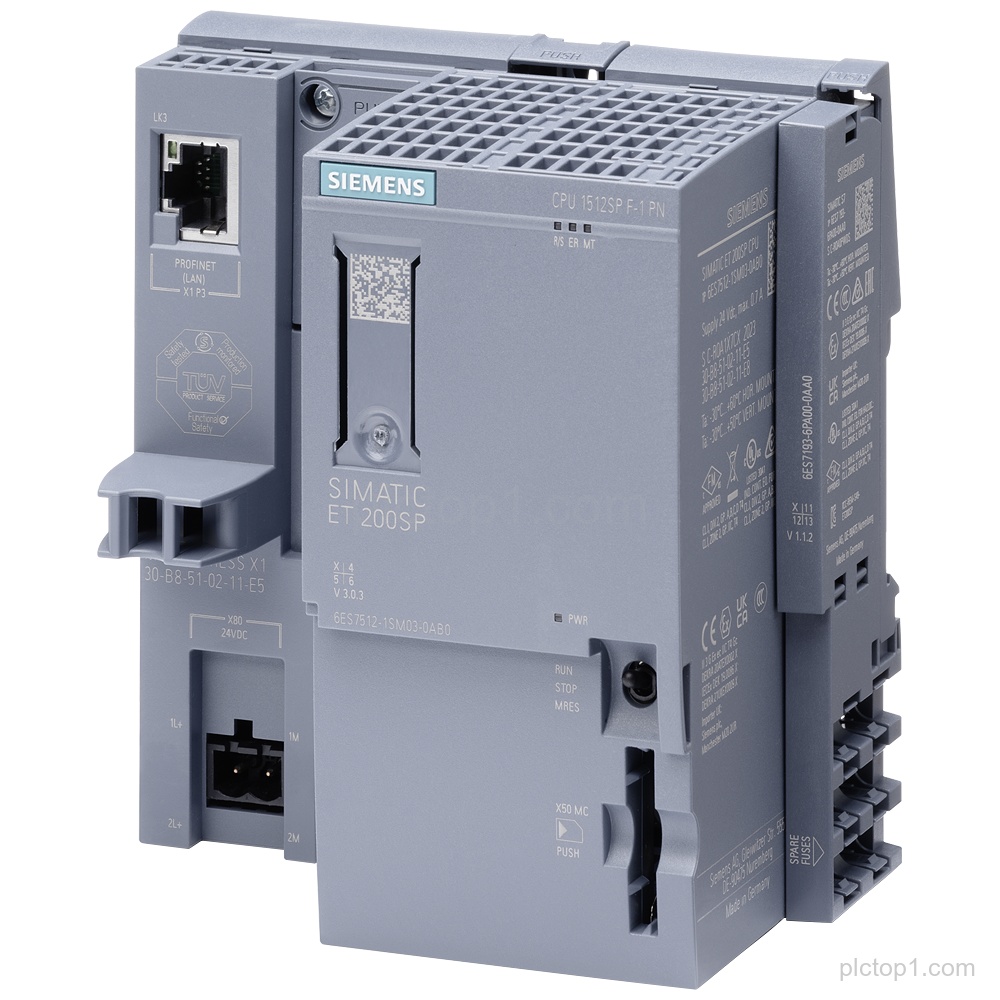

SIPLUS ET 200SP CPU 1512SP F-1 (Part Number: 6AG1512-1SM03-2AB0) provides central processing unit functions with conformal coating and specified memory and interface characteristics; SIMATIC Memory Card and BusAdapter are required for configured port access.
Detailed Parameters
Based on:6ES7512-1SM03-0AB0
Conformal coating:Yes
Operating temperature range:-40…+60 °C
Work memory for program:600 KB
Work memory for data:2 MB
1st interface:PROFINET IRT
PROFINET IRT switch:3-port switch
Bit performance:25 ns
Required accessories:SIMATIC Memory Card required; BusAdapter required for port 1 and 2
Engineering Context
CPU 1512SP F-1 is specified as a central processing unit for the SIPLUS ET 200SP system.
The CPU 1512SP F-1 includes a 1st interface using PROFINET IRT with a 3-port switch and specified bit performance.
SIMATIC Memory Card and BusAdapter for port 1 and 2 are required for the stated interface port configuration.
FAQ
1. What is the product family and designation of 6AG1512-1SM03-2AB0?
6AG1512-1SM03-2AB0 is SIPLUS ET 200SP CPU 1512SP F-1.
2. What temperature range is specified for this CPU?
-40…+60 °C.
3. How much work memory is provided for program and data?
600 KB for program and 2 MB for data.
4. Which interface is specified as the 1st interface, and what switch configuration is included?
The 1st interface is PROFINET IRT with a 3-port switch.
5. What bit performance is specified?
25 ns bit performance.
6. Are any additional components required for the CPU’s operation with the stated ports?
SIMATIC Memory Card required; BusAdapter required for port 1 and 2.
