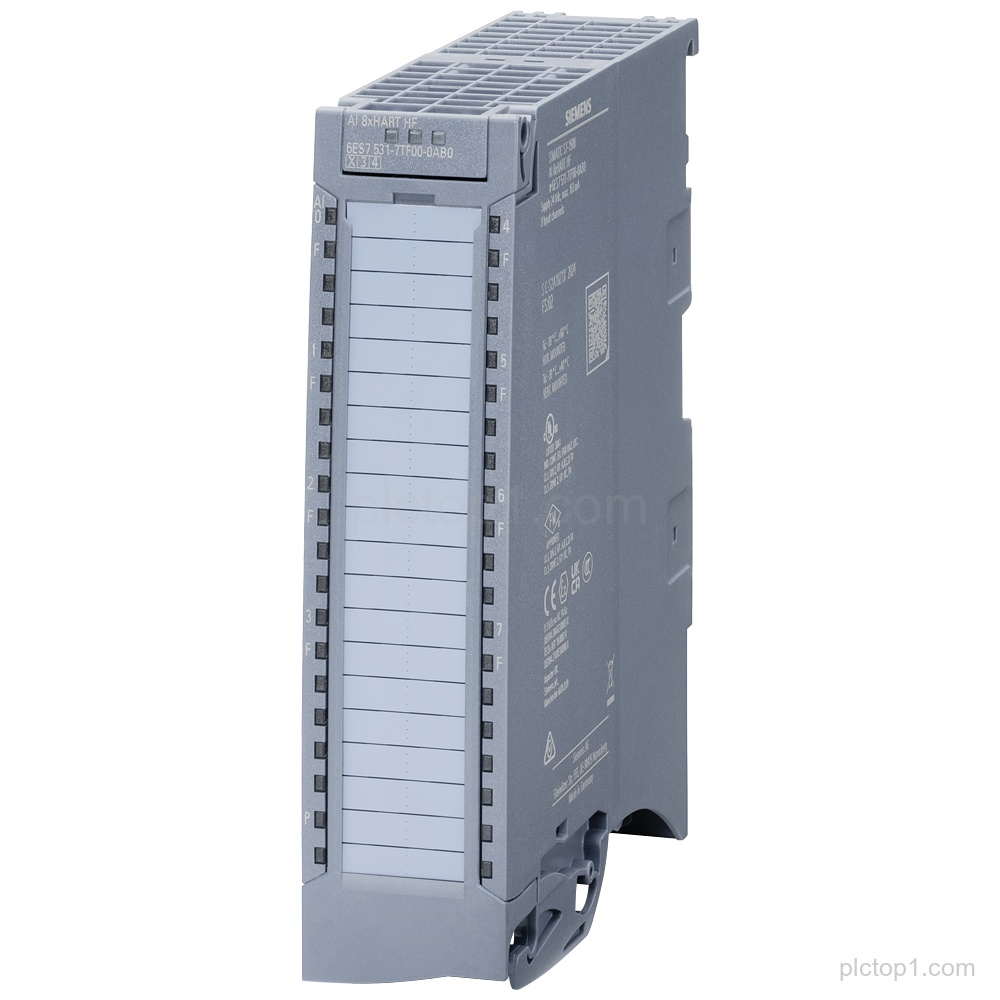

SIMATIC S7-1500 AI 8xHART HF analog input module; order number 6ES7531-7TF00-0AB0.
Detailed Parameters
Module type:Analog input module AI 8xHART HF
Accuracy:0.1%
Channels:8
Channel grouping:8 channels in groups of 4
Common mode voltage:30 V AC/60 V DC
Diagnostics:Diagnostics available
Hardware interrupts:Hardware interrupts calibrate in RUN
Delivery includes:Infeed element, shielding bracket and shield terminal
Engineering Context
The AI 8xHART HF analog input module in the SIMATIC S7-1500 system provides 8 analog input channels arranged in groups of 4.
The module specifies a common mode voltage of 30 V AC/60 V DC and an accuracy of 0.1%.
Diagnostics are provided and hardware interrupts calibrate in RUN.
FAQ
1. What SIMATIC S7-1500 module is provided by part number 6ES7531-7TF00-0AB0?
The product is an analog input module AI 8xHART HF.
2. How many channels does the AI 8xHART HF module offer and how are they grouped?
It offers 8 channels in groups of 4.
3. What is the specified accuracy of the module?
The specified accuracy is 0.1%.
4. What common mode voltage is specified for the module?
The specified common mode voltage is 30 V AC/60 V DC.
5. Does the module support diagnostics and how do hardware interrupts behave in RUN?
Diagnostics are available, and hardware interrupts calibrate in RUN.
6. What is included in the delivery for 6ES7531-7TF00-0AB0?
Delivery includes infeed element, shielding bracket and shield terminal.
